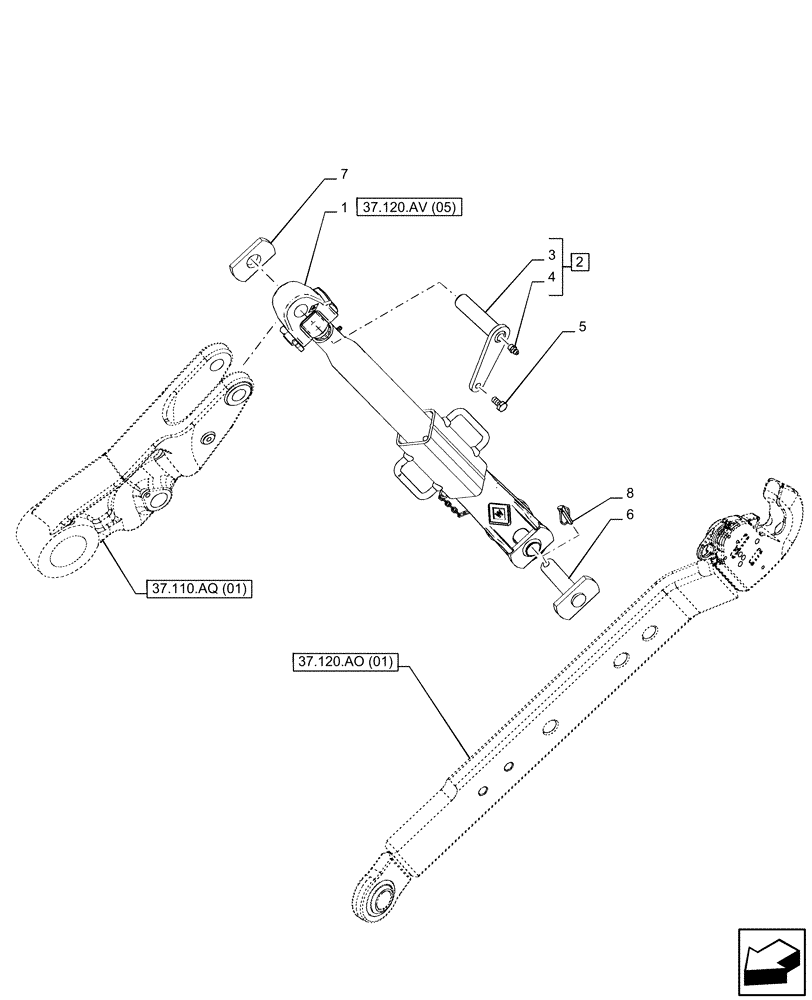

Запчасти Case IH PUMA 200 CVT (37.120.AV[07]) - VAR - 391170, 758071, 758072, 758075, 758076, 758077, 758080, 758081, 758082 - 3 POINT HITCH, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84385467

LIFTING ROD

ASSY, Standard

1шт.

1

87311417

LIFT LINK

ASSY, Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when P/N 84385467 is not Available

1шт.

2

87317296

PIN,28mm OD x 122.5mm L

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

2шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

6

87315467

PIN

1шт.

Order only when P/N 87311417 Is Equipped

1шт.

6

84177955

CLEVIS PIN,28mm OD x 155.5mm L

1шт.

Order only when P/N 84385467 Is Equipped

1шт.

7

87315466

PLATE

1шт.

Order only when P/N 87311417 Is Equipped

1шт.

7

84177956

PLATE

1шт.

Order only when P/N 84385467 Is Equipped

1шт.

8

47125579

LINCH PIN,11.5mm OD

1шт.

Order only when P/N 84385467 Is Equipped

1шт.
