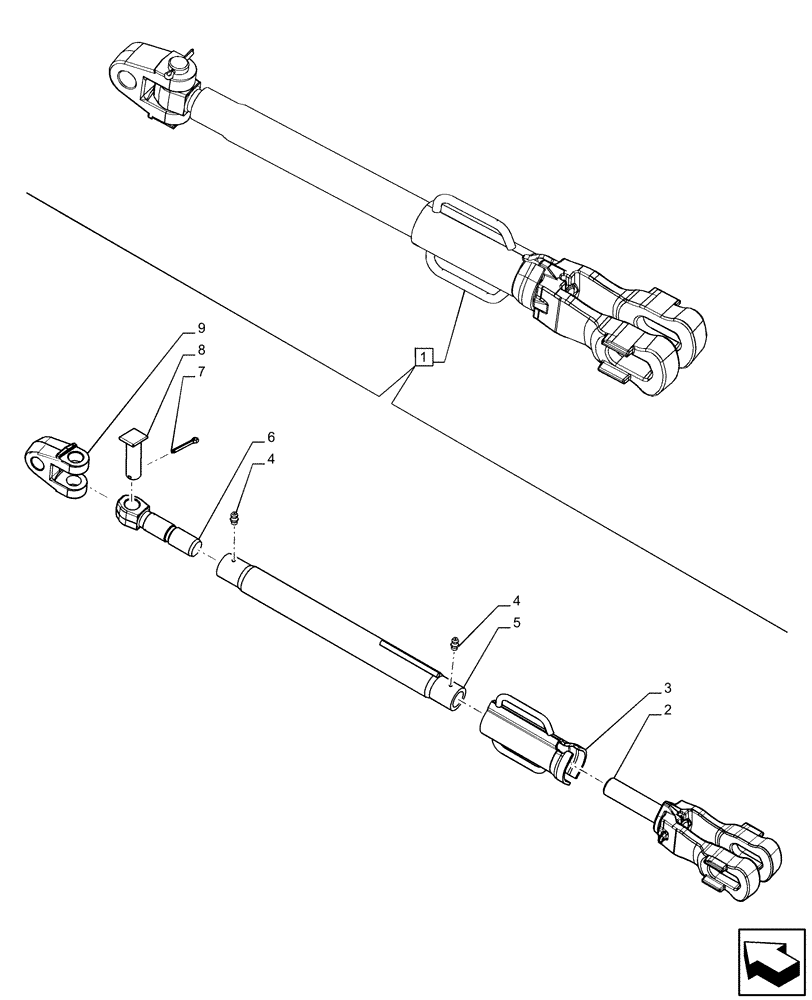

Запчасти Case IH PUMA 200 CVT (37.120.AV[05]) - VAR - 391170, 758071, 758072, 758074, 758075, 758076, 758077, 758079, 758080, 758081, 758082, 758083 - 3 POINT HITCH, LIFT ARM, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84385467

LIFTING ROD

ASSY, Standard, Incl 2 - 9

1шт.

1

87311417

LIFT LINK

ASSY, Alternative Part, Incl 2 - 9

1шт.

Same Usage/Applicability. To be Ordered when P/N 84385467 is not Available

1шт.

2

87315045

YOKE

1шт.

Order only when P/N 87311417 Is Equipped

1шт.

2

84177954

YOKE,M36 x 3

1шт.

Order only when P/N 84385467 Is Equipped

1шт.

3

84253957

TURNBUCKLE

1шт.

Order only when P/N 87311417 Is Equipped

1шт.

3

84177956

PLATE

1шт.

Order only when P/N 84385467 Is Equipped

1шт.

4

5197863

LUBE NIPPLE,M6 x 1

1шт.

5

84253955

TUBE,M36 x 3

1шт.

6

5197825

LIFT LINK END ASSY,M36 x 3

1шт.

7

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

8

5197827

PIN

1шт.

9

5197826

YOKE

1шт.
