(33.350.AE[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR CONTROL

Запчасти Case IH PUMA 200 CVT (33.350.AE[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR CONTROL (33) - BRAKES & CONTROLS

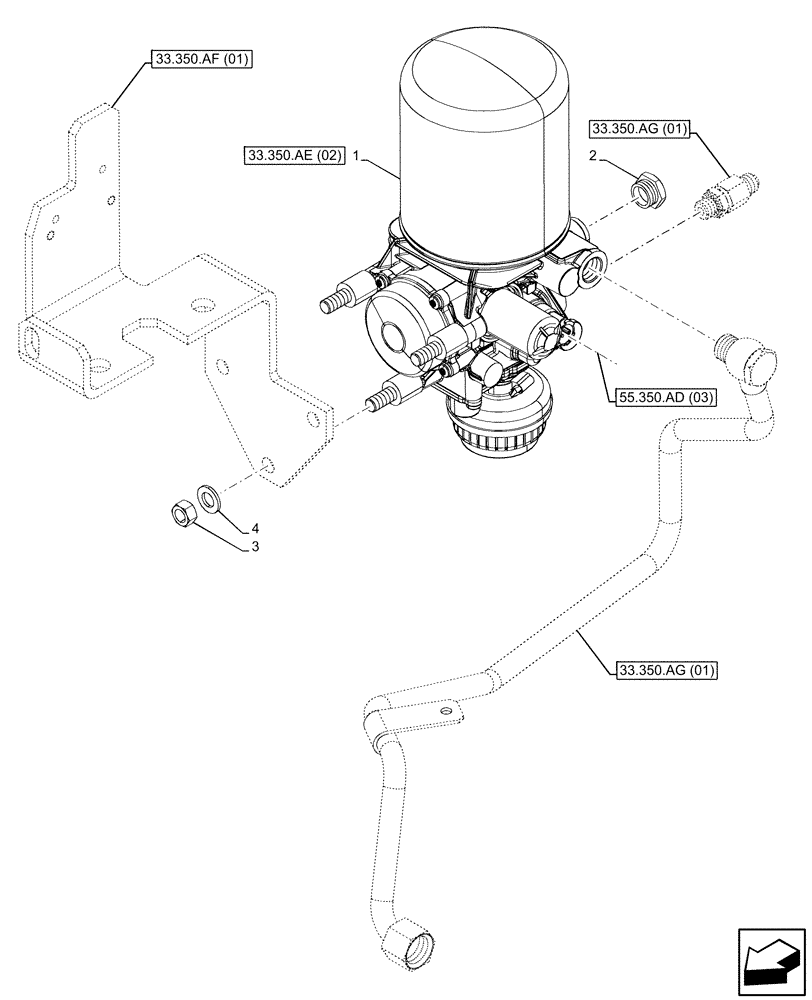

Схема запчастей Case IH PUMA 200 CVT - (33.350.AE[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR CONTROL (33) - BRAKES & CONTROLS
33.350.af (01)
2
4
1
3
33.350.ag (01)
33.350.ag (01)
33.350.ae (02)
55.350.ad (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84394092

AIR CONTROL

ASSY

1шт.

2

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

3

337475

NUT,M12, Cl 10

3шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.
