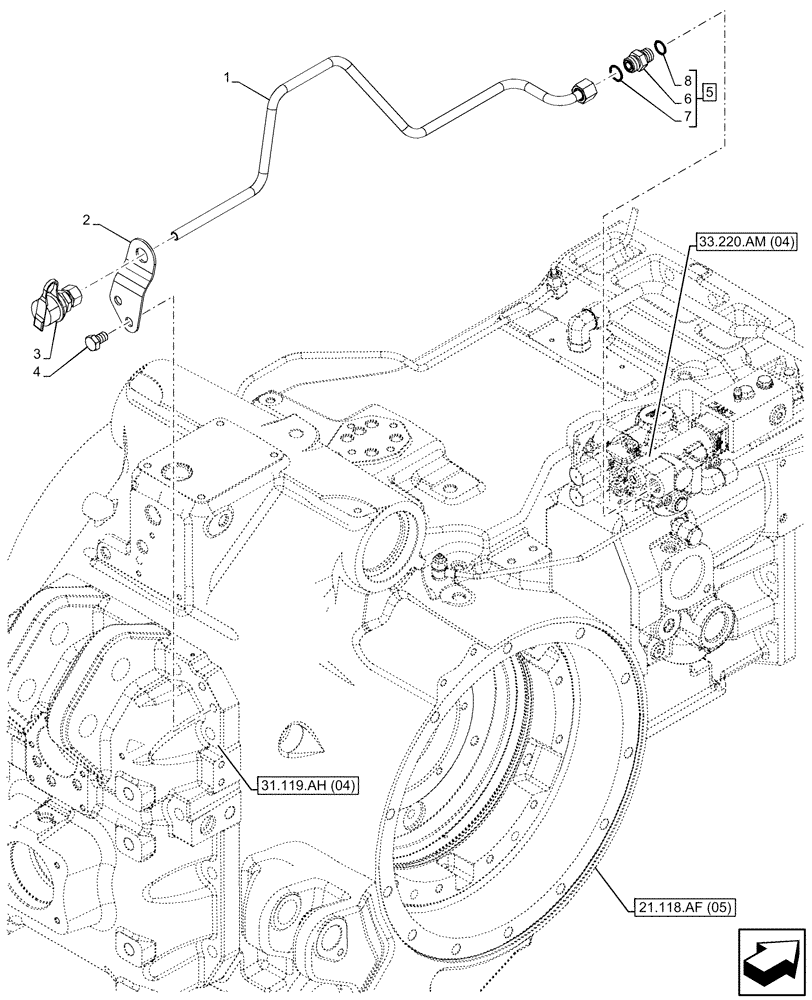

Запчасти Case IH PUMA 200 CVT (33.202.AP[02]) - VAR - 337482, 337491 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, LINE, ITALY, ANTILOCK BRAKING SYSTEM (ABS) (33) - BRAKES & CONTROLS

1

84326329

PIPE

LH, Trailer Brake Valve

1шт.

1

87608334

TUBE

1шт.

2

87608326

BRAKE LINE

1шт.

2

5196322

BRACKET

1шт.

3

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

3

44015354

QUICK MALE COUPLING

1шт.

4

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

4

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

47131496

PLUG,Hex, M12 x 1

1шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

9625546

CAP,11/16" - 16 ORFS

2шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

1шт.

10

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 11 - 13

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, incl in 10

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

87608334

TUBE

RH, Trailer Brake Valve

1шт.

15

44015354

QUICK MALE COUPLING

1шт.

16

5196322

BRACKET

1шт.

17

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
