Запчасти Case IH PUMA 200 CVT (21.507.AI[01]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, HYDRAULIC CYLINDER, COMPONENTS, CVT (21) - TRANSMISSION

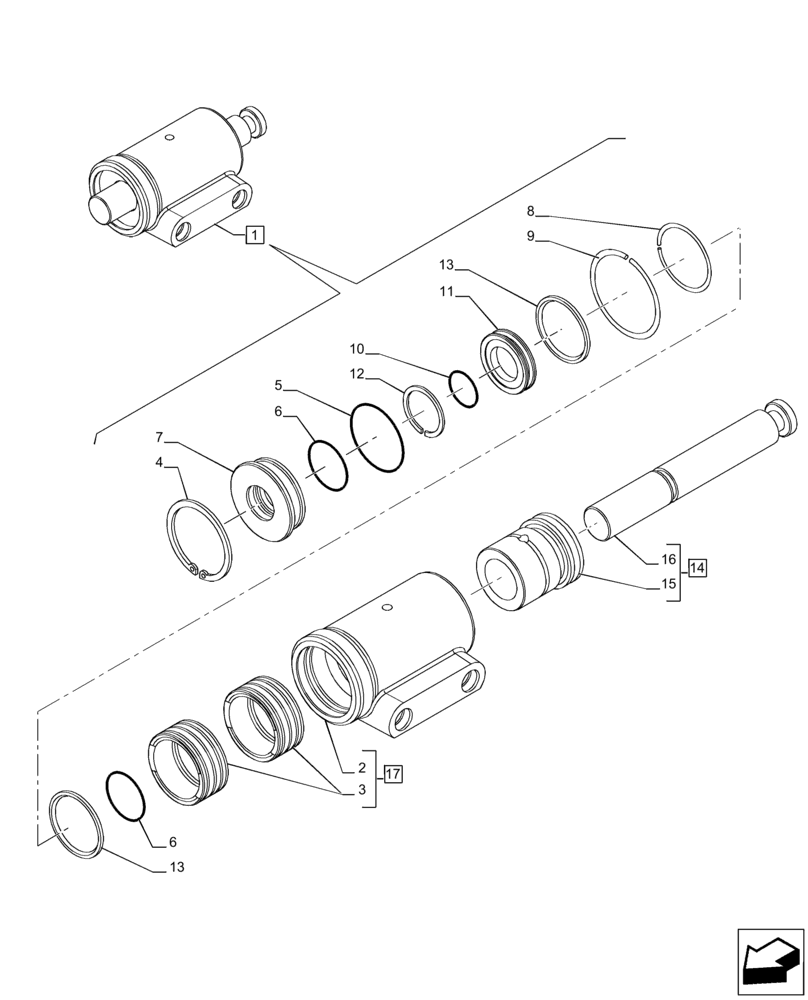

Схема запчастей Case IH PUMA 200 CVT - (21.507.AI[01]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, HYDRAULIC CYLINDER, COMPONENTS, CVT (21) - TRANSMISSION
15
2
3
14
6
7
10
13
17
1
12
13
16
8
6
5
9
11
4

Артикул

Название

Примечание

Количество

1

87549885

OPERATING CYLINDER

Range II - R1, ASSY, Incl 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 17

1шт.

3

82990913

BUSHING,42mm ID x 49.975 - 49.967mm OD x 24.50mm Thk

2шт.

3

82990914

BUSHING,42mm ID x 49.982 - 49.976mm OD x 24.50mm Thk

2шт.

3

82990915

BUSHING,42mm ID x 49.990 - 49.983mm OD x 24.50mm Thk

2шт.

3

82990916

BUSHING,42mm ID x 49.998 - 49.991mm OD x 24.50mm Thk

2шт.

3

82990917

BUSHING,42mm ID x 50.006 - 49.999mm OD x 24.50mm Thk

2шт.

4

11060676

CIRCLIP,M55, Int

1шт.

5

14459180

O-RING,45.69mm ID x 2.62"

1шт.

6

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

7

87549336

CYLINDER END CAP

1шт.

8

13398876

SNAP RING,M38, Int

1шт.

9

13422176

CIRCLIP,M26, Int

1шт.

10

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

11

5199737

PISTON RING,41.65mm OD x 23.8mm ID x 8mm Thk

1шт.

12

11067276

SNAP RING,M24, Ext

1шт.

13

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

2шт.

14

87549877

SPOOL,41.65mm OD

II - R1 and IV - R2, ASSY, Incl 15,16

1шт.

15

47127530

PISTON

1шт.

16

NSS

NOT SOLD SEPARAT

Spool, Incl in 14

1шт.

17

87700318

BARREL

Cylinder, ASSY, Incl 2, 3

1шт.

Выбрано товаров: 21
