Запчасти Case IH PUMA 200 CVT (21.507.AD[08]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, REVERSE SHAFT, CVT (21) - TRANSMISSION

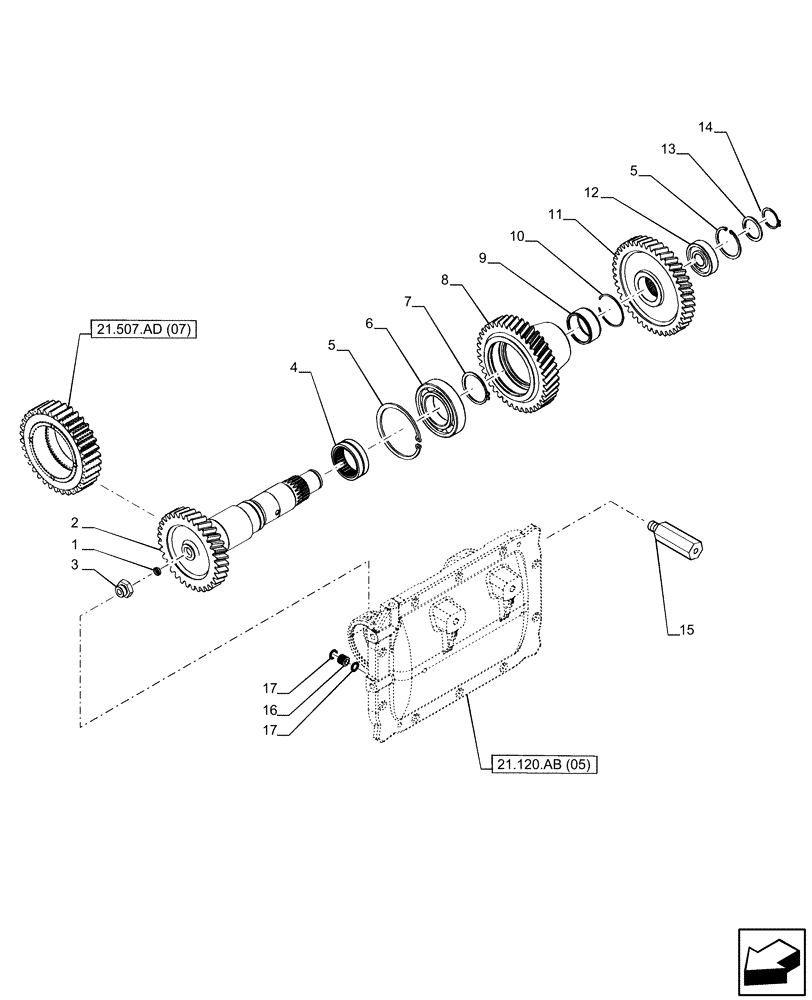

Схема запчастей Case IH PUMA 200 CVT - (21.507.AD[08]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, REVERSE SHAFT, CVT (21) - TRANSMISSION
21.507.ad (07)
4
2
4
13
14
10
5
3
5
15
14
9
16
13
5
8
17
17
7
1
11
17
12
5
3
2
16
9
11
6
8
10
6
7
1
12
15
17
21.120.ab (05)
21.507.ad (07)

Артикул

Название

Примечание

Количество

1

87541312

PLUG

1шт.

2

87588055

SHAFT,40.6/128.7mm ID x 44.6/147.4mm OD x 304mm L, 21/33T

1шт.

3

87545638

LUBE OIL NOZZLE

1шт.

4

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

1шт.

5

11062976

SNAP RING,Int, M100 x 3

1шт.

6

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

7

11069576

SNAP RING,M55, Ext

1шт.

8

87528476

GEAR,40T

1шт.

9

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

10

5142178

SNAP RING,1.5mm Thk

1шт.

11

87589205

GEAR,42T

1шт.

12

87562566

BALL BEARING,35mm ID x 100mm OD x 25mm W

1шт.

13

87548132

SPACER,35mm ID x 45mm OD x 3mm L

1шт.

14

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

15

87534205

NOZZLE,M10 x 1.25 x 62mm L

6шт.

16

87567456

BUSHING,6.5mm ID x 14.4mm OD x 14mm L

1шт.

17

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

Выбрано товаров: 17
