Запчасти Case IH PUMA 200 CVT (21.507.AD[04]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, SPACER, CVT (21) - TRANSMISSION

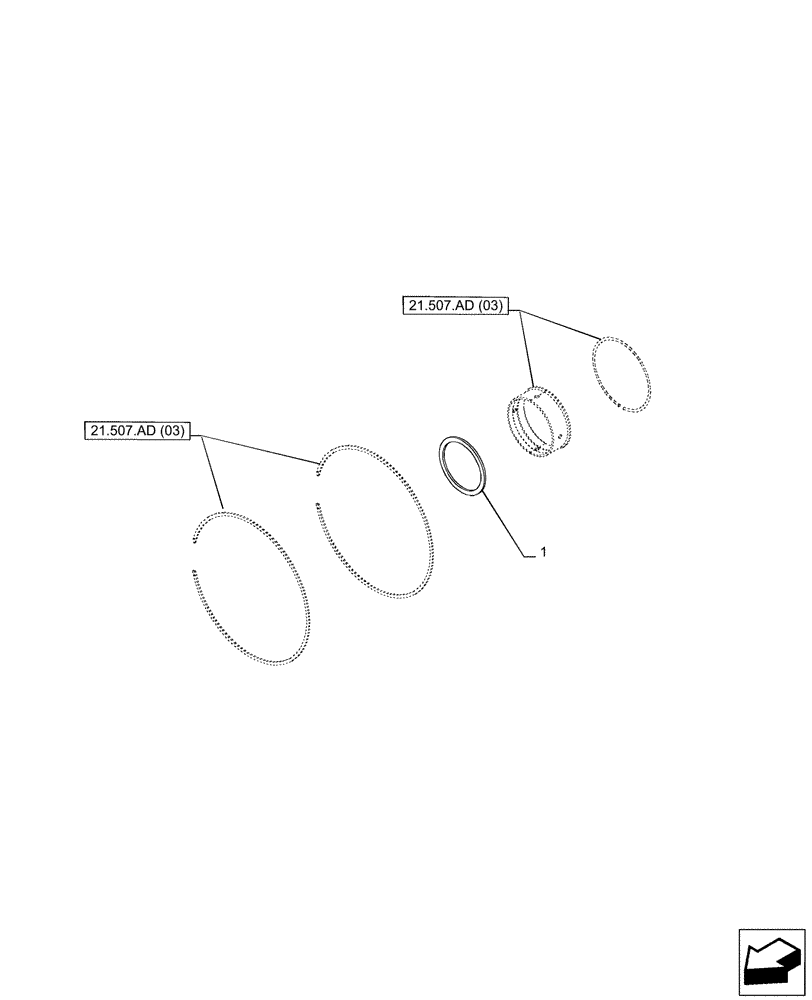

Схема запчастей Case IH PUMA 200 CVT - (21.507.AD[04]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, SPACER, CVT (21) - TRANSMISSION
21.507.ad (03)
1
21.507.ad (03)

Артикул

Название

Примечание

Количество

1

84231224

SPACER,74.6mm ID x 88mm OD x 3mm L

3.00mm Thk

1шт.

1

84231215

SPACER,74.6mm ID x 88mm OD x 2.5mm L

2.50mm Thk

1шт.

1

84231218

SPACER,74.6mm ID x 88mm OD x 2.6mm L

2.60mm Thk

1шт.

1

84231220

SPACER,74.6mm ID x 88mm OD x 2.7mm L

2.70mm Thk

1шт.

1

84231222

SPACER,74.6mm ID x 88mm OD x 2.8mm L

2.80mm Thk

1шт.

1

84231223

SPACER,74.6mm ID x 88mm OD x 2.9mm L

2.90mm Thk

1шт.

1

84231225

SPACER,74.6mm ID x 88mm OD x 3.1mm L

3.10mm Thk

1шт.

1

84231226

SPACER,74.6mm ID x 88mm OD x 3.2mm L

3.20mm Thk

1шт.

1

84231227

SPACER,74.6mm ID x 88mm OD x 3.3mm L

3.30mm Thk

1шт.

1

84231237

SPACER,74.6mm ID x 88mm OD x 3.4mm L

3.40mm Thk

1шт.

Выбрано товаров: 10
