Запчасти Case IH PUMA 200 CVT (21.506.BE[04]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION LINE (21) - TRANSMISSION

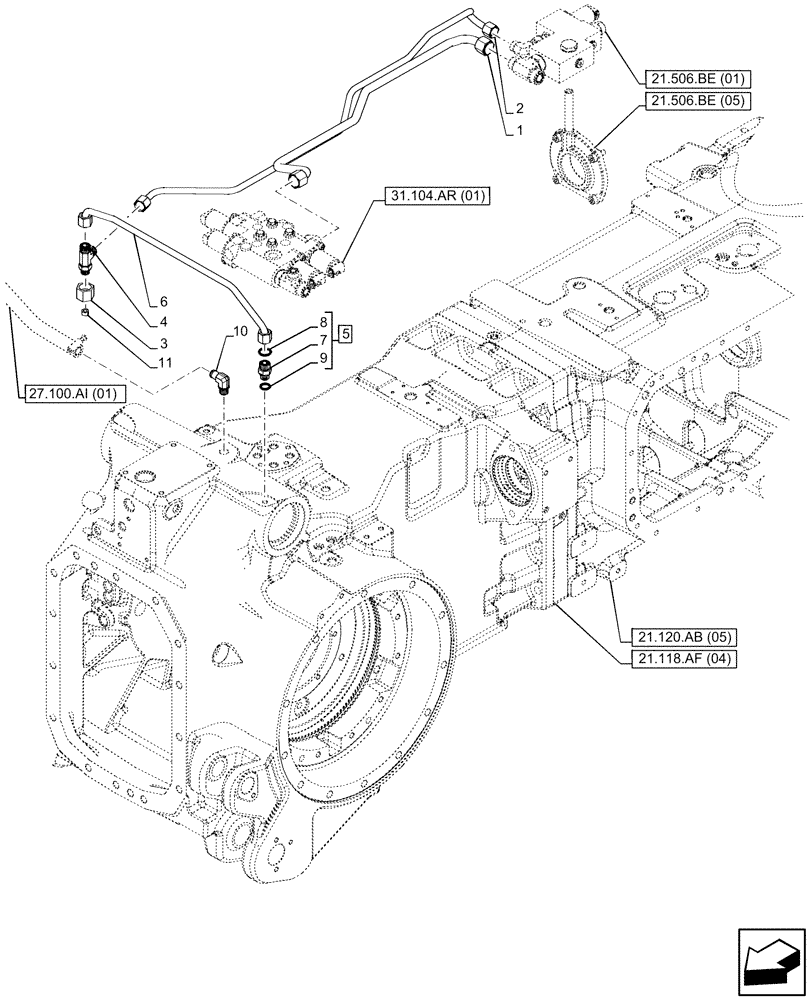

Схема запчастей Case IH PUMA 200 CVT - (21.506.BE[04]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION LINE (21) - TRANSMISSION
21.506.be (05)
7
5
8
4
6
1
9
2
3
11
10
21.120.ab (05)
21.506.be (01)
21.118.af (04)
27.100.ai (01)
31.104.ar (01)

Артикул

Название

Примечание

Количество

1

87667420

HYD TUBE,16 mm DIA

Rear Lube

1шт.

2

87676104

PIPE

Lube Brake LH

1шт.

3

9840576

CAP,1" - 14 ORFS

1шт.

4

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

5

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

6

87744058

HYD TUBE

Lube Brake RH

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, incl in 5

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

87336911

HYD CONNECTOR

1шт.

11

87487907

ORIFICE

1шт.

Выбрано товаров: 11
