Запчасти Case IH PUMA 200 CVT (10.500.AD[01]) - VAR - 391130, 758000 - DEF/ADBLUE™ LINES (10) - ENGINE

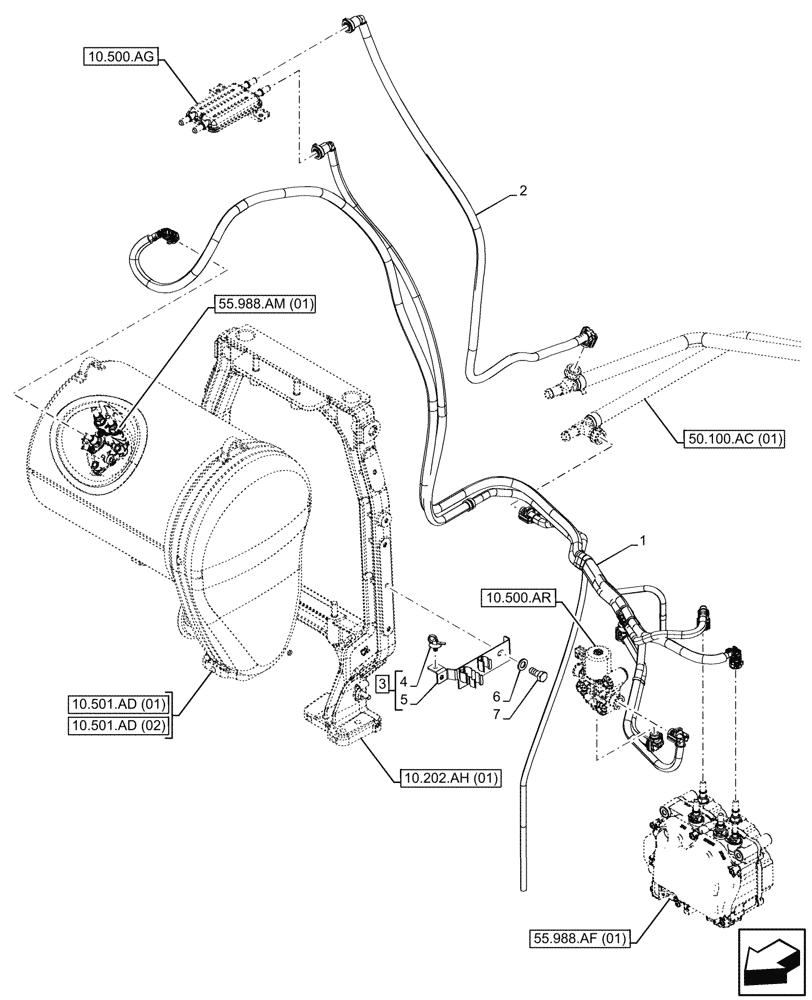

Схема запчастей Case IH PUMA 200 CVT - (10.500.AD[01]) - VAR - 391130, 758000 - DEF/ADBLUE™ LINES (10) - ENGINE
55.988.af (01)
6
5
3
4
2
7
1
10.500.ag
50.100.ac (01)
55.988.am (01)
10.501.ad (01)
10.501.ad (02)
10.500.ar
10.202.ah (01)

Артикул

Название

Примечание

Количество

1

47673990

PIPE

Hose from (DEF)/AdBlue® Dosing Control to (DEF)/AdBlue® Dosing Module

1шт.

2

47606802

PIPE

Hose from (DEF)/AdBlue® Delivery Line to Dosing Injector to Heater Supply Line

1шт.

3

47804531

BRACKET

ASSY, Incl 4, 5

1шт.

4

82033028

CABLE TIE,170mm L

1шт.

5

NSS

NOT SOLD SEPARAT

Bracket, Incl in 3

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

16043411

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

1шт.

Выбрано товаров: 7
