Запчасти Case IH PUMA 200 CVT (10.216.AY[01]) - VAR - 337410, 337411 - FUEL COOLER, LINE (10) - ENGINE

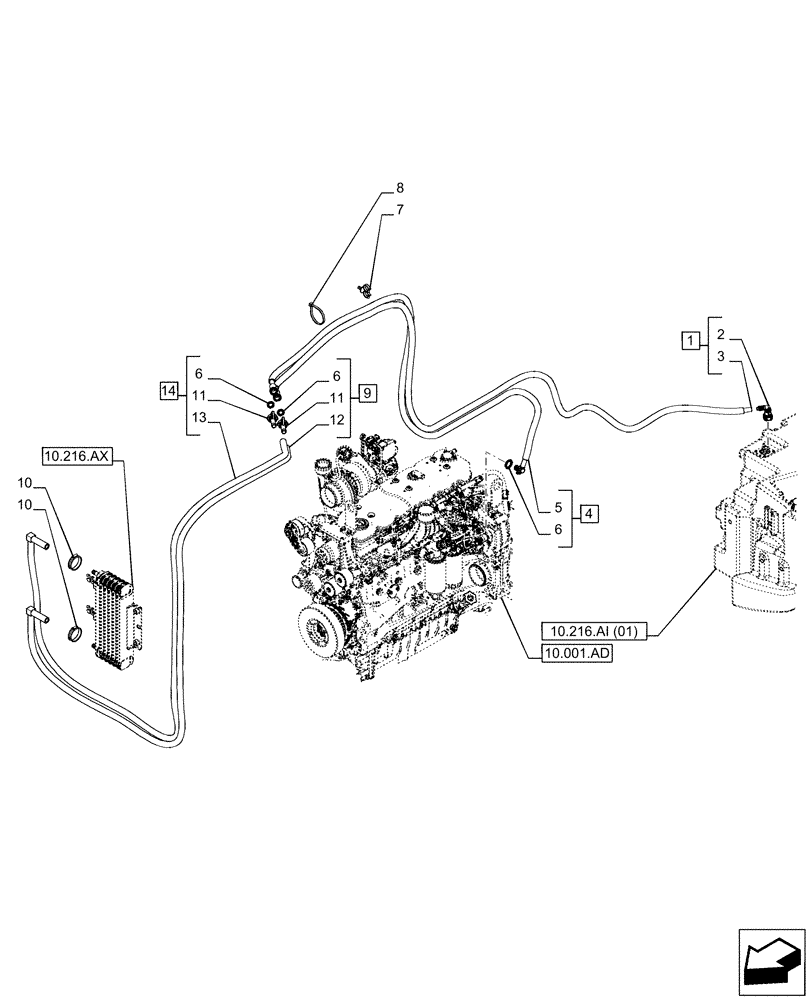

Схема запчастей Case IH PUMA 200 CVT - (10.216.AY[01]) - VAR - 337410, 337411 - FUEL COOLER, LINE (10) - ENGINE
10.001.ad
11
2
7
1
10
10
13
12
9
4
11
5
8
6
6
3
6
14
10.216.ai (01)
10.216.ax

Артикул

Название

Примечание

Количество

1

84359922

FUEL HOSE

ASSY, Fuel Hose, from Tank to Cooler, Incl 2, 3

1шт.

2

84367132

FITTING,5/16'

1шт.

3

NSS

NOT SOLD SEPARAT

Fuel Hose, Incl in 1

1шт.

4

84359923

FUEL HOSE

ASSY, Fuel Hose, from Engine to Cooler, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fuel Hose, Incl in 4

1шт.

6

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.

7

47618287

CLIP,16/17mm ID

1шт.

8

86566989

CABLE TIE,208mm L

6шт.

9

47725241

FUEL HOSE

ASSY, Fuel Fose, from Engine to Cooler, ASSY, Incl 6 (Qty 1), 11 (Qty), 12

1шт.

10

82039341

CLAMP,12mm - 22mm

2шт.

11

NSS

NOT SOLD SEPARAT

Coupling, Incl in 9 (Qty 1), 14 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fuel Hose, Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

Fuel Hose, Incl in 14

1шт.

14

47725247

FUEL HOSE

ASSY, Fuel Hose, from Tank to Cooler, ASSY, Incl 6 (Qty1), 11 (Qty1), 13

1шт.

Выбрано товаров: 14
