Запчасти Case IH PUMA 200 CVT (88.100.55[07]) - DIA KIT, WORK LIGHT, MARKER (88) - ACCESSORIES

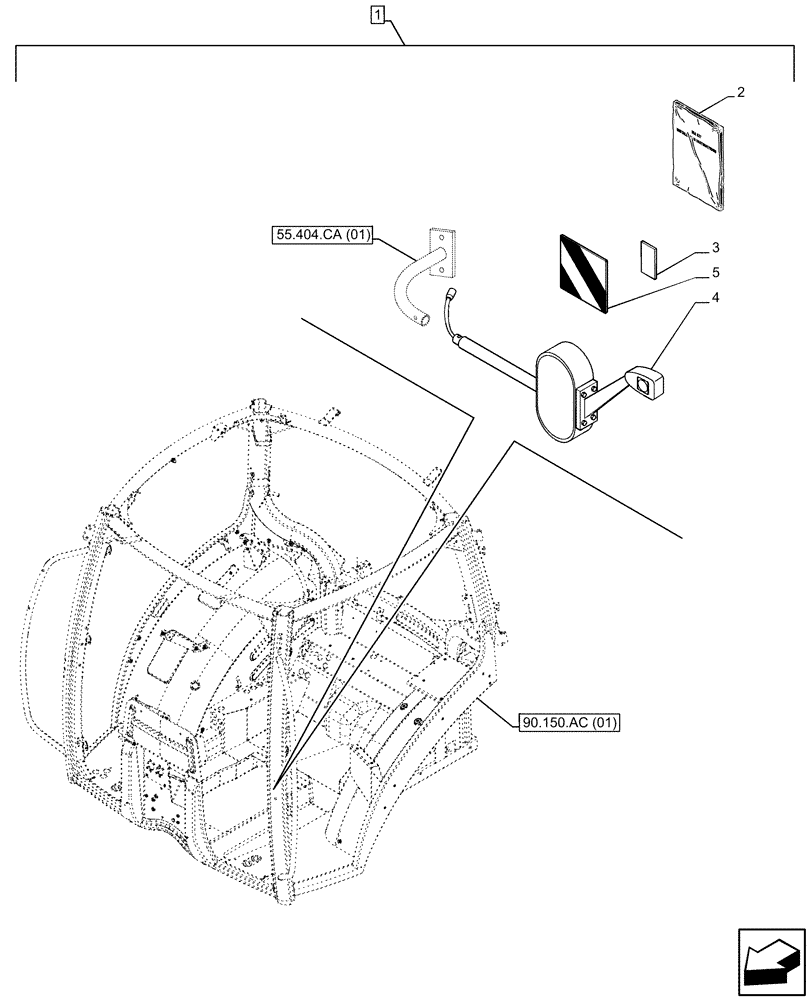

Схема запчастей Case IH PUMA 200 CVT - (88.100.55[07]) - DIA KIT, WORK LIGHT, MARKER (88) - ACCESSORIES
55.404.ca (01)
2
5
3
4
1
90.150.ac (01)

Артикул

Название

Примечание

Количество

1

710592014

DIA KIT, TRACTOR

European 3M Worklight for Front Marker Lights, Use with Wide Fenders, Incl 1 - 5

1шт.

2

47878829

INSTRUCTION

1шт.

3

87448110

ADHESIVE STRIP

4шт.

4

87607244

WORK LAMP,RH Led, 12-24V, White Lens

RH

1шт.

4

87607245

WORK LAMP,LH Led, 12/24V, White Lens

LH

1шт.

5

87448098

PLATE

1шт.

Выбрано товаров: 6
