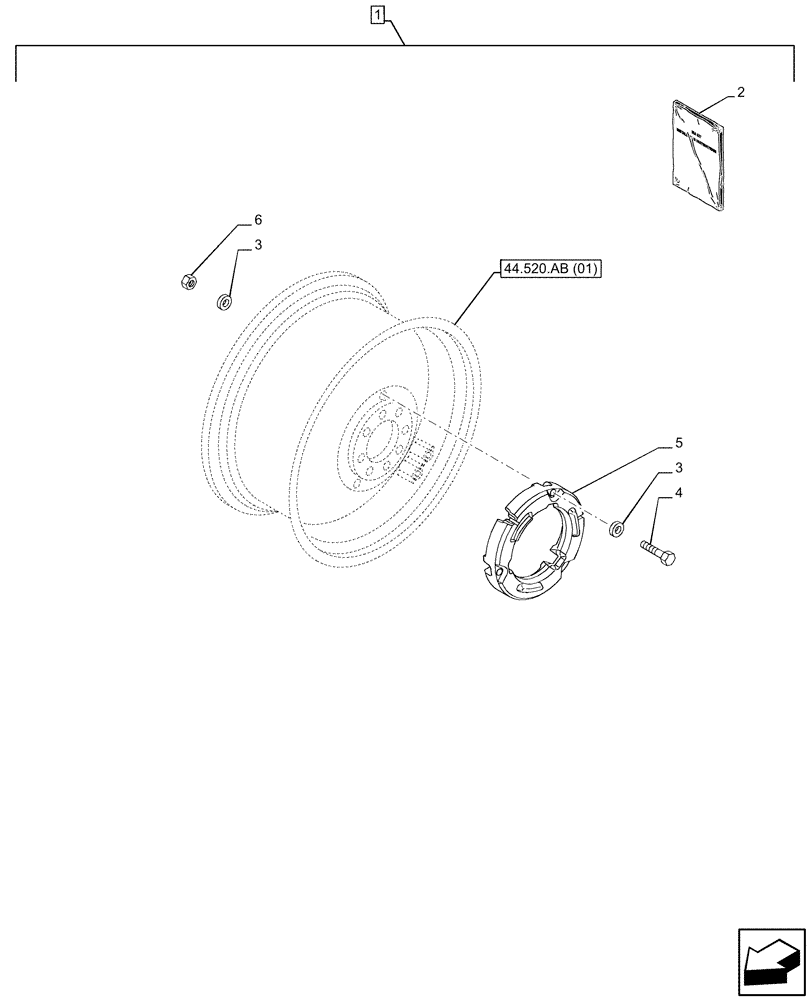

Запчасти Case IH PUMA 200 CVT (88.100.39[03]) - DIA KIT, WHEEL, BALLAST, RING (88) - ACCESSORIES

1

710013014

DIA KIT, TRACTOR

2X113Kg Rear Wheel Ballast Adaptor Rings, Incl 2 - 6

1шт.

2

47684051

INSTRUCTION

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

24шт.

4

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

6шт.

4

15982537

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

6шт.

4

15982831

BOLT,Hex, M16 x 1.5 x 180mm, Cl 10.9

6шт.

5

87643827

WHEEL WEIGHT

113Kg

2шт.

6

10790524

NUT,M16 x 1.5

12шт.
