Запчасти Case IH PUMA 200 CVT (88.100.35[09]) - DIA KIT, TUBES TO CONNECT MID MOUNT VALVE, PORT 3 - 4 TO FRONT IMPLEMENT TUBES (88) - ACCESSORIES

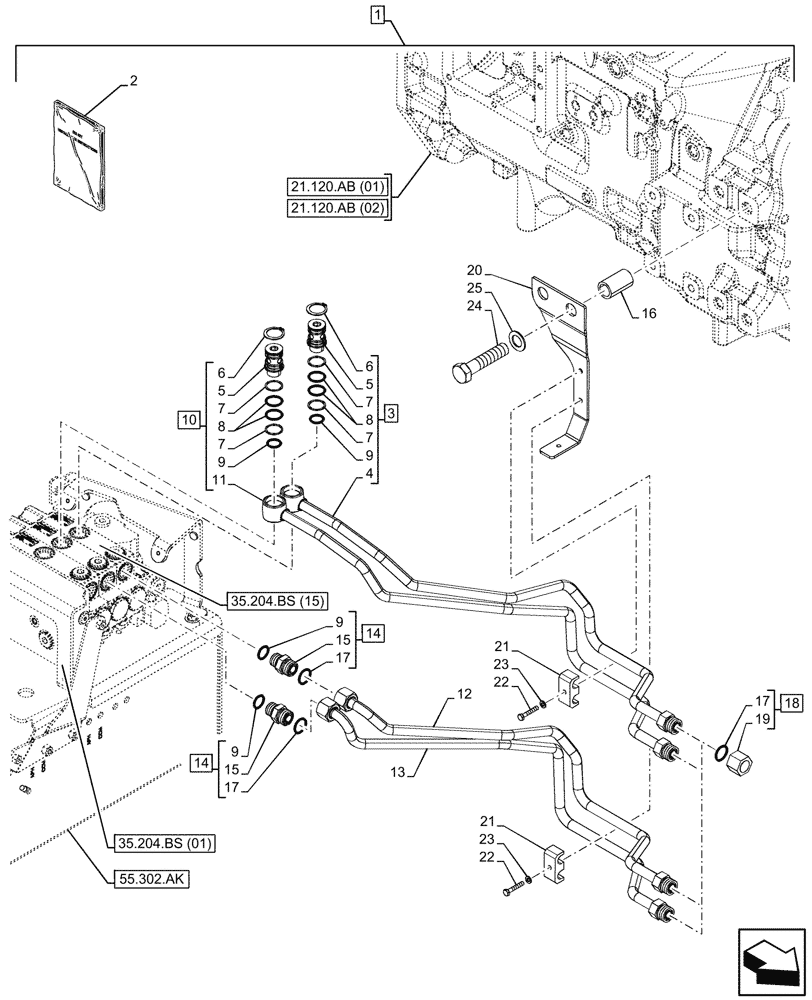

Схема запчастей Case IH PUMA 200 CVT - (88.100.35[09]) - DIA KIT, TUBES TO CONNECT MID MOUNT VALVE, PORT 3 - 4 TO FRONT IMPLEMENT TUBES (88) - ACCESSORIES
5
17
11
10
35.204.bs (01)
16
6
15
23
23
1
22
7
21.120.ab (01)
21.120.ab (02)
14
24
7
22
8
7
21
4
25
12
15
5
3
9
14
19
7
20
35.204.bs (15)
55.302.ak
9
9
13
17
9
2
8
18
6
21
17

Артикул

Название

Примечание

Количество

1

718021014

DIA KIT, TRACTOR

Tubes Connect Mid-Mount Valves to Front Implement Tubes and Quick Attach Ports (MMV 3-4), Incl 2 - 25

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47684056

INSTRUCTION

1шт.

3

47681572

HYD TUBE

ASSY, MMV Aux Slice 4-B, Incl 4, 5 (Qty 1), 6 (Qty 1), 7 (Qty 2), 8 (Qty 2), 9 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 3

1шт.

5

47530975

BANJO BOLT,M22 x 1.5

2шт.

6

300629

SNAP RING,M28, Ext

2шт.

7

47361752

RING,24.28mm ID x 28.64mm OD x 1.35mm Thk

4шт.

8

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

4шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

10

47681568

HYD TUBE

ASSY, MMV Aux Slice 3-B, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 2), 8 (Qty 2), 9 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Tube, Incl in 10

1шт.

12

47681570

HYD TUBE

MMV Aux Slice 4-A

1шт.

13

47681566

HYD TUBE

MMV Aux Slice 3-A

1шт.

14

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 9 (Qty 1), 15 (Qty 1), 17 (Qty 1)

2шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

2шт.

16

47682923

SPACER

2шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

18

9840576

CAP,1" - 14 ORFS

ASSY, Incl 17 (Qty 1), 19 (Qty 1)

4шт.

19

NSS

NOT SOLD SEPARAT

Cap, Incl in 18

4шт.

20

48011138

BRACKET

1шт.

21

87608306

CLAMP BRACKET

2шт.

22

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

2шт.

25

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

Выбрано товаров: 26
