Запчасти Case IH PUMA 200 CVT (88.100.35[07]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES

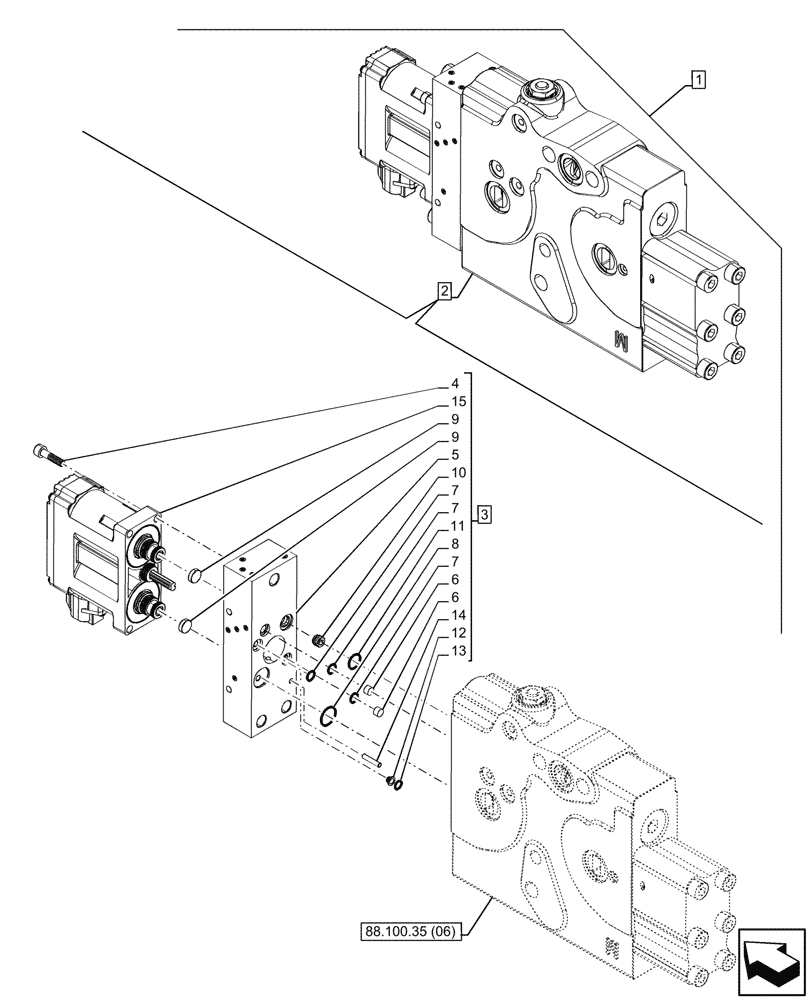

Схема запчастей Case IH PUMA 200 CVT - (88.100.35[07]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES
88.100.35 (06)
7
15
4
5
9
7
10
7
11
14
6
1
12
13
8
2
6
3
9

Артикул

Название

Примечание

Количество

1

718917044

DIA KIT, TRACTOR

Rear Hydraulic Power Beyond Connector, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47723760

HYDRAULIC VALVE

ASSY, Main Low Leak, Incl 3 - 15

1шт.

3

47735858

PILOT VALVE

ASSY, Incl 4 - 15

1шт.

4

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

5

NSS

NOT SOLD SEPARAT

Adapter Plate, Incl in 3

1шт.

6

87714123

FILTER

2шт.

7

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

8

84313724

O-RING,12.42mm ID x 1.78mm Thk

1шт.

9

47592733

FILTER STRAINER

2шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 3

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

Filter, Incl in 3

1шт.

13

47711752

O-RING,1.78mm Thk x 9.25mm ID, -012, 80 Duro

1шт.

14

13902270

ROLL PIN,M3.5 x 20, Coiled

1шт.

15

NSS

NOT SOLD SEPARAT

Pilot Head Valve, Incl in 3

1шт.

Выбрано товаров: 16
