Запчасти Case IH PUMA 200 CVT (88.100.35[06]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES

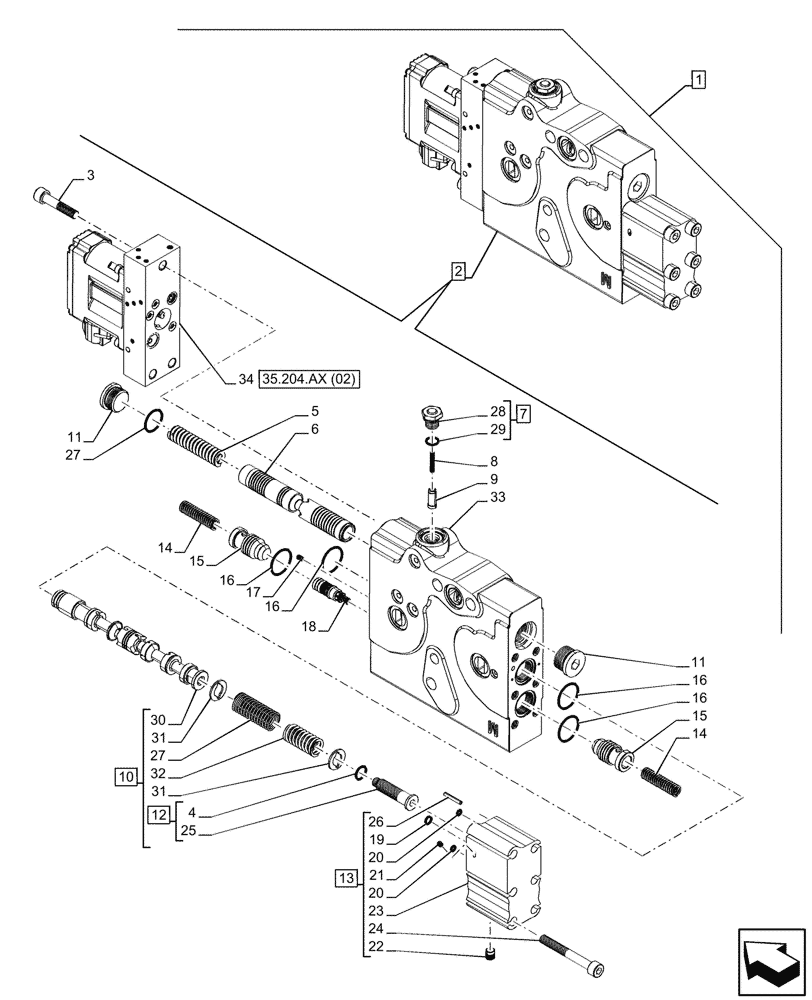

Схема запчастей Case IH PUMA 200 CVT - (88.100.35[06]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES
35.204.ax (02)
5
27
7
11
11
16
15
33
16
13
19
8
28
24
16
10
29
22
3
27
9
30
32
20
23
12
4
17
31
34
16
21
1
20
14
14
25
15
26
31
6
2
18

Артикул

Название

Примечание

Количество

1

718917044

DIA KIT, TRACTOR

Rear Hydraulic Power Beyond Connector, Incl 2 - 34

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47723760

HYDRAULIC VALVE

ASSY, Main Low Leak, Incl 3 - 34

1шт.

3

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

4

9626932

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

5

47664791

SPRING,15.25mm OD x 82.58mm L

1шт.

6

47839041

SPOOL,15.9mm ID x 18.63mm OD x 119mm L

1шт.

7

87648607

PLUG,M12 x 1.5 ORB

ASSY, Incl 28, 29

1шт.

8

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

9

87648631

PIN,8mm OD x 19mm L

1шт.

10

47801801

SPOOL,19.04mm OD

ASSY, Incl 4, 12, 25, 27, 30 - 32

1шт.

11

86625138

PLUG,7/18" - 14

2шт.

12

47801796

PLUG

ASSY, Incl 4, 25

1шт.

13

47733217

PILOT VALVE

ASSY, Incl 19 - 24, 26

1шт.

14

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

15

47683317

POPPET

2шт.

16

47422966

SEAL,23.52mm ID x 1.78mm Thk

4шт.

17

84579020

PLUG,1.81" - 2.75"

5шт.

18

84307011

CHECK VALVE

1шт.

19

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

20

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

21

282836A1

PLUG,4mm OD x 4mm L

2шт.

22

282839A1

PLUG,8mm OD x 8.5mm L

1шт.

23

NSS

NOT SOLD SEPARAT

Cover, Incl in 13

1шт.

24

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

26

13902270

ROLL PIN,M3.5 x 20, Coiled

1шт.

27

47801794

SPRING,13.34mm OD x 46.67mm L

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.

29

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

Spool, Incl in 10

1шт.

31

47801792

WASHER,10.18mm ID x 20.5mm OD x 1.5mm Thk

2шт.

32

47801793

SPRING,19.1mm OD x 39.34mm L

1шт.

33

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

34

47735858

PILOT VALVE

ASSY

1шт.

Выбрано товаров: 35
