(55.988.AM[01]) - VAR - 391130, 758000 - SELECTIVE CATALYTIC REDUCTION (SCR) DOSING MODULE

Запчасти Case IH PUMA 200 CVT (55.988.AM[01]) - VAR - 391130, 758000 - SELECTIVE CATALYTIC REDUCTION (SCR) DOSING MODULE (55) - ELECTRICAL SYSTEMS

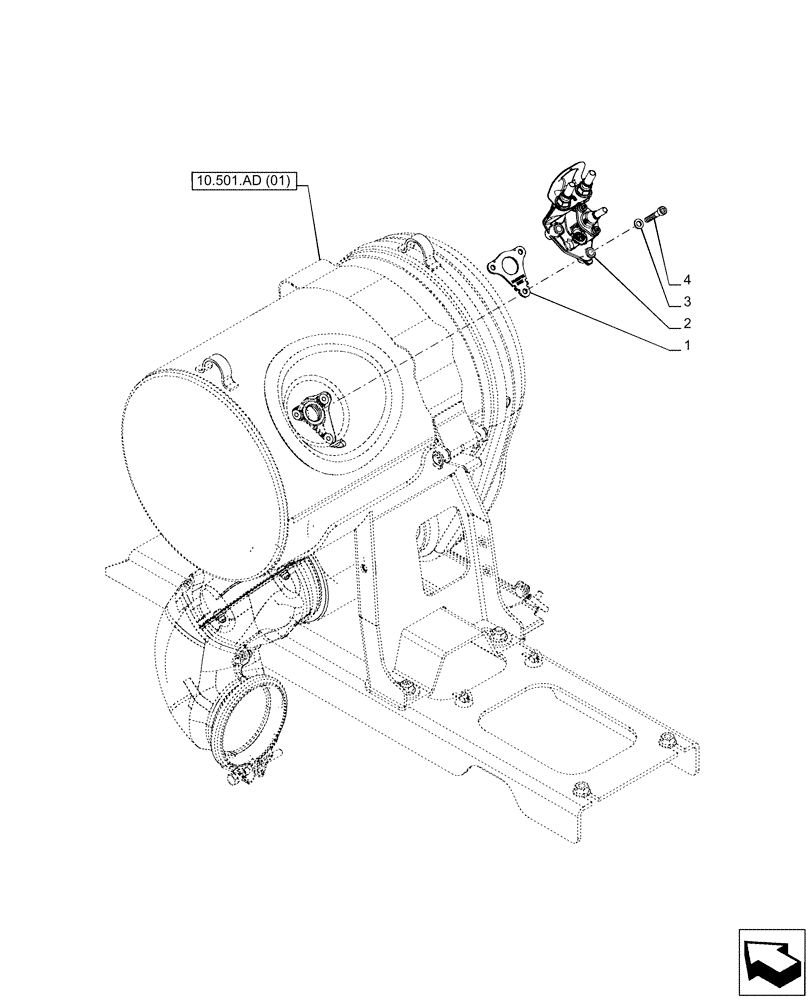

Схема запчастей Case IH PUMA 200 CVT - (55.988.AM[01]) - VAR - 391130, 758000 - SELECTIVE CATALYTIC REDUCTION (SCR) DOSING MODULE (55) - ELECTRICAL SYSTEMS
10.501.ad (01)
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47605145

GASKET,2.4mm Thk

1шт.

2

47506932

INJECTOR, EMISSIONS

ASSY

1шт.

2

47506932R

REMAN-INJEC EMISSION

1шт.

2

47506932C

CORE-INJEC EMISSION

Return Number

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

4

14305621

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

Выбрано товаров: 6
