(55.680.AA[01]) - VAR - 338330, 338321, 338322, 338326, 338327, 338330, 338332, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - CAB, HARNESS, AUTOGUIDANCE SYSTEM

Запчасти Case IH PUMA 200 CVT (55.680.AA[01]) - VAR - 338330, 338321, 338322, 338326, 338327, 338330, 338332, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - CAB, HARNESS, AUTOGUIDANCE SYSTEM (55) - ELECTRICAL SYSTEMS

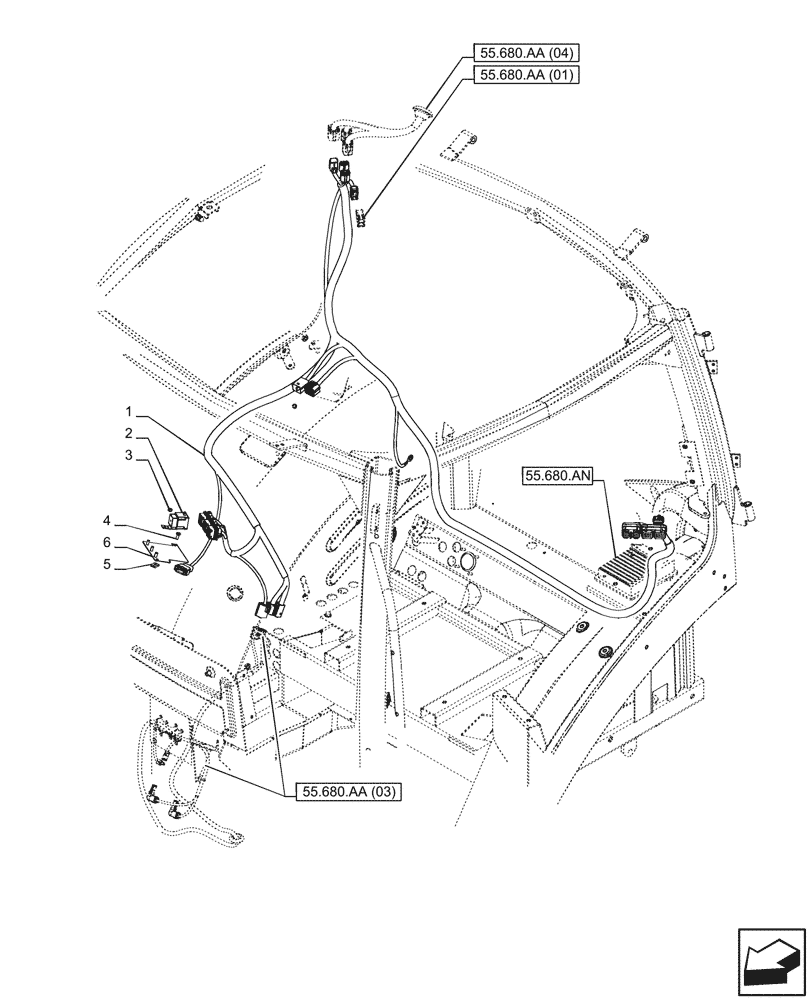

Схема запчастей Case IH PUMA 200 CVT - (55.680.AA[01]) - VAR - 338330, 338321, 338322, 338326, 338327, 338330, 338332, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - CAB, HARNESS, AUTOGUIDANCE SYSTEM (55) - ELECTRICAL SYSTEMS
55.680.aa (04)
4
3
5
1
6
2
55.680.an
55.680.aa (01)
55.680.aa (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47579410

WIRE HARNESS

Autoguidance

1шт.

2

82017871

RELAY,12V, 20A

Autoguidance

3шт.

3

15896211

NUT,M6, Cl 8

3шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

5

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

6

87744795

SUPPORT

1шт.

Выбрано товаров: 6
