(55.640.BH[09]) - VAR - 758161, 758376, 758964, 758965 - ISOBUS SOCKET, RELAY

Запчасти Case IH PUMA 200 CVT (55.640.BH[09]) - VAR - 758161, 758376, 758964, 758965 - ISOBUS SOCKET, RELAY (55) - ELECTRICAL SYSTEMS

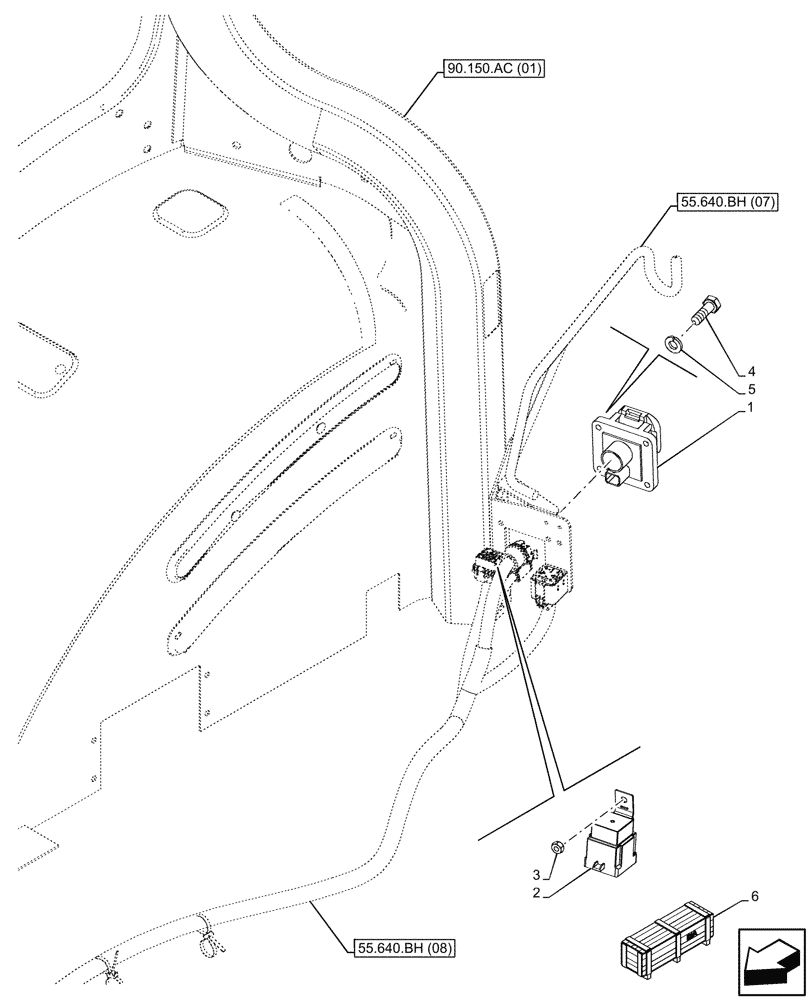

Схема запчастей Case IH PUMA 200 CVT - (55.640.BH[09]) - VAR - 758161, 758376, 758964, 758965 - ISOBUS SOCKET, RELAY (55) - ELECTRICAL SYSTEMS
55.640.bh (07)
2
1
5
4
3
6
90.150.ac (01)
55.640.bh (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87522416

ELEC CONNECTOR,Female, 5 Cavities

1шт.

2

82017871

RELAY,12V, 20A

1шт.

4

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

5

10571579

LOCK WASHER,M6

4шт.

3

15896211

NUT,M6, Cl 8

4шт.

6

719344094

DIA KIT, TRACTOR

Rear Isobus, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
