Запчасти Case IH PUMA 200 CVT (55.640.BH[06]) - VAR - 758161, 758376, 758965 - ISOBUS SOCKET, RELAY (55) - ELECTRICAL SYSTEMS

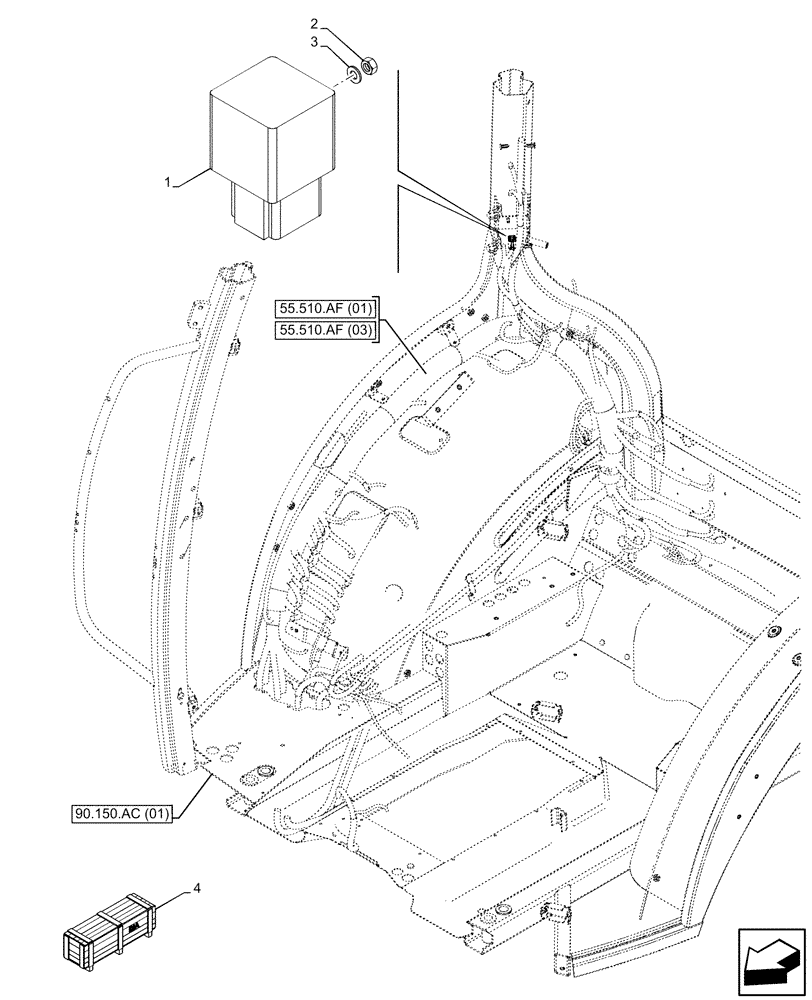

![Схема запчастей Case IH PUMA 200 CVT - (55.640.BH[06]) - VAR - 758161, 758376, 758965 - ISOBUS SOCKET, RELAY (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5354419.png)
55.510.af (03)
3
1
4
2
55.510.af (01)
90.150.ac (01)
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
84577117
RELAY,12V, 2A
1шт.
2
15896211
NUT,M6, Cl 8
1шт.
3
14496401
WASHER,M6.4 x 12.00mm x 1.60mm
1шт.
4
710060024
DIA KIT, TRACTOR
Additional Front Cab Mount Socket for Isobus Connection, Incl 1 - 3
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
4
719344094
DIA KIT, TRACTOR
Rear Isobus, Incl 1 - 3
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 7
