Запчасти Case IH PUMA 200 CVT (55.512.CS[01]) - VAR - 758265, 758666, 758667, 758668, 758669, 759265 - ARMREST, ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

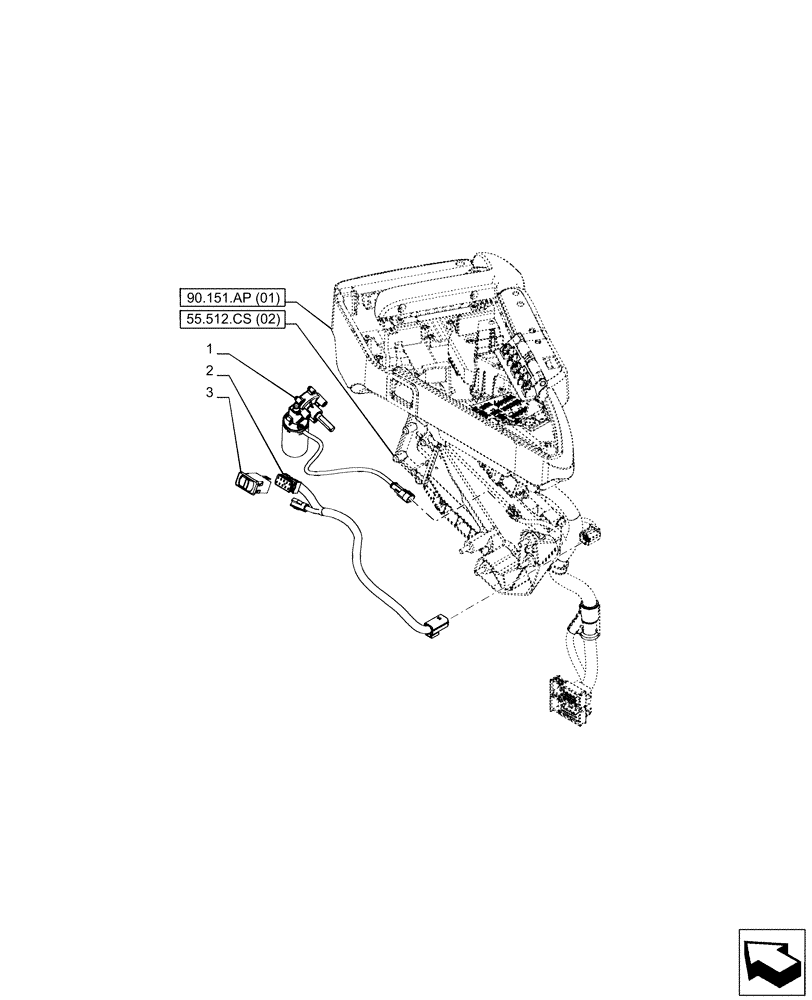

Схема запчастей Case IH PUMA 200 CVT - (55.512.CS[01]) - VAR - 758265, 758666, 758667, 758668, 758669, 759265 - ARMREST, ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS
90.151.ap (01)
3
1
2
55.512.cs (02)

Артикул

Название

Примечание

Количество

1

84235755

ELECTRIC MOTOR,12V

Garu Armrest Electric Adjustment

1шт.

2

84195895

WIRE HARNESS

Garu Armrest Electric Adjustment

1шт.

3

87494094

SWITCH ASSY

Rocker, Garu Armrest Electric Adjustment

1шт.

Выбрано товаров: 3
