(55.510.AF[01]) - CAB, MAIN HARNESS

Запчасти Case IH PUMA 200 CVT (55.510.AF[01]) - CAB, MAIN HARNESS (55) - ELECTRICAL SYSTEMS

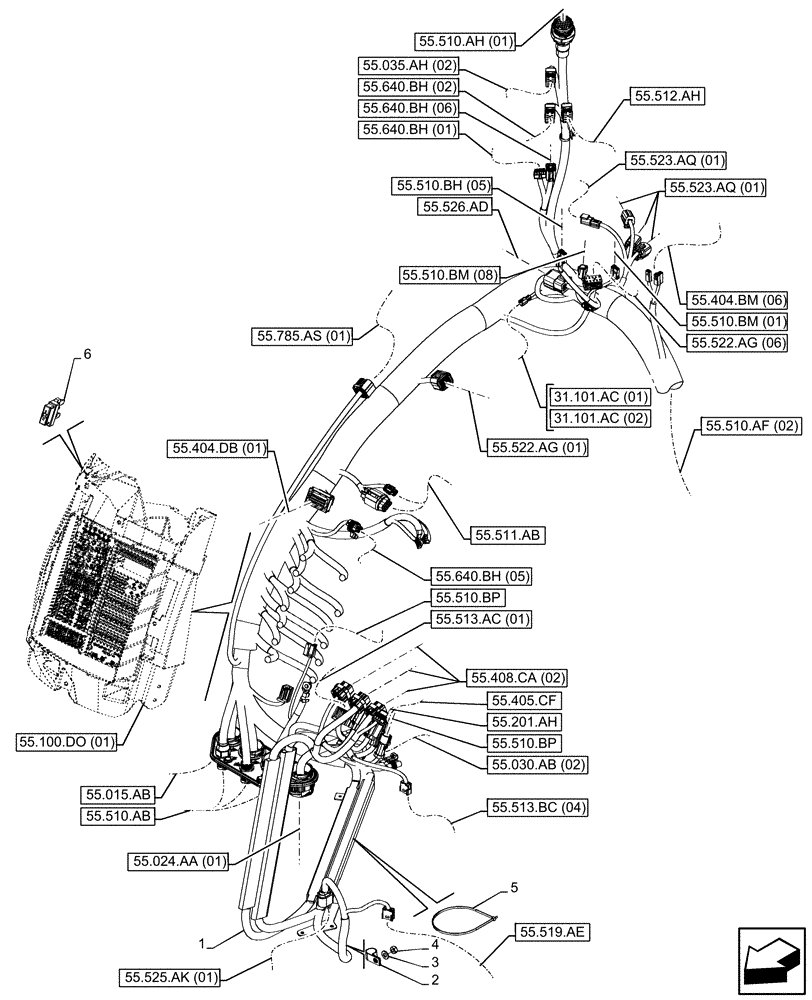

Схема запчастей Case IH PUMA 200 CVT - (55.510.AF[01]) - CAB, MAIN HARNESS (55) - ELECTRICAL SYSTEMS
55.523.aq (01)
2
5
3
4
55.510.bh (05)
55.100.do (01)
55.404.bm (06)
6
55.024.aa (01)
1
55.512.ah
55.201.ah
55.030.ab (02)
55.405.cf
55.510.bp
55.510.bp
55.510.ab
55.511.ab
55.522.ag (06)
55.510.af (02)
55.522.ag (01)
55.408.ca (02)
55.510.bm (08)
55.526.ad
55.510.ah (01)
55.513.bc (04)
55.015.ab
31.101.ac (01)
55.510.bm (01)
55.513.ac (01)
55.640.bh (06)
55.525.ak (01)
31.101.ac (02)
55.404.db (01)
55.640.bh (02)
55.785.as (01)
55.640.bh (05)
55.640.bh (01)
55.035.ah (02)
55.519.ae
55.523.aq (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47754421

WIRE HARNESS

Cab Main Harness

1шт.

2

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

5

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

6

87736207

DIODE,1A, Black

1шт.

Выбрано товаров: 6
