Запчасти Case IH PUMA 185 CVT (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

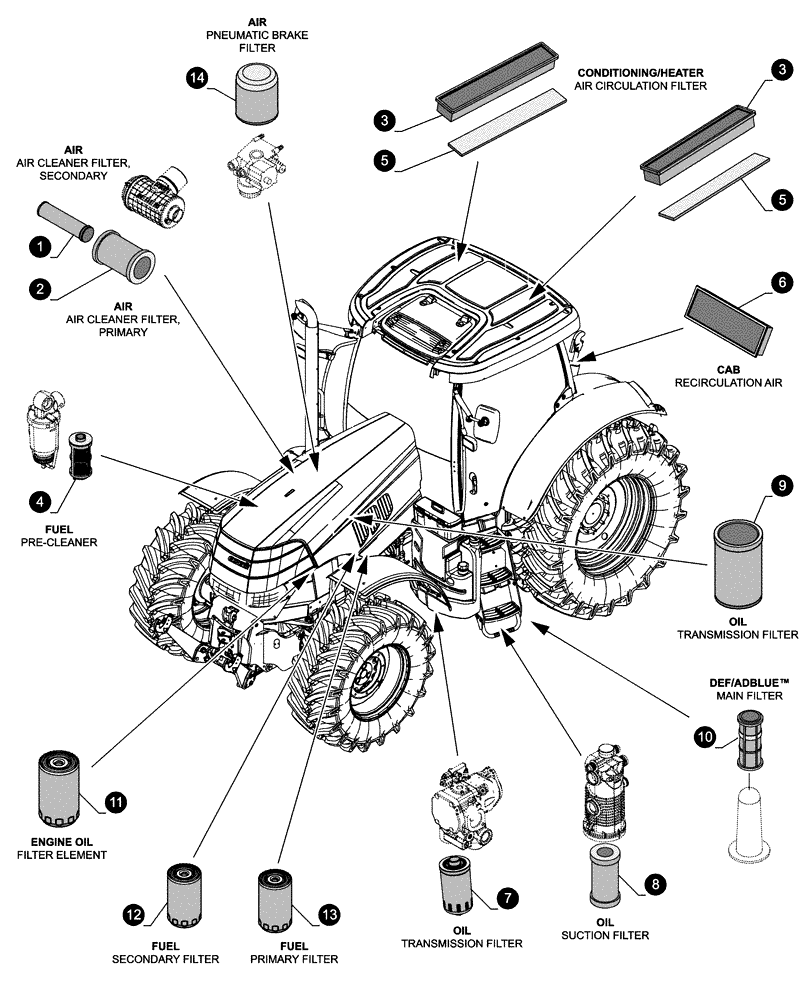

Схема запчастей Case IH PUMA 185 CVT - (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE
12
13
1
11
10
5
6
2
7
9
8
5
14
4
3
3

Артикул

Название

Примечание

Количество

1

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Secondary Cartridge, Every 1200 hours or every 2 years

1шт.

Valid with CVT Models

1шт.

2

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Primary Cartridge, Every 600 hours

1шт.

Valid with CVT Models

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 600 hours

2шт.

4

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

5

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

2шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

7

84417139

ELEMENT,267.5mm L, 11 Micron

Transmission/Pump, Every 600 hours

1шт.

For the first Replacement order also : PN 84417137 Housing + PN 84550359 O-Ring

1шт.

Valid with CVT Models

1шт.

7

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Transmission/Pump, Every 600 hours

1шт.

Valid with Powershuttle Models

1шт.

8

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron, Every 600 hours, Years: -09-MAR-16

1шт.

8

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Suction, 32 Micron, Every 600 hours, Start Year: 09-MAR-16

1шт.

9

87588814

HYDRAULIC OIL FILTER,151mm L

Transmission/Pump, Every 600 hours

1шт.

Valid with CVT Models

1шт.

10

47364243

FILTER

DeNOx2, Every 3600 hours or every 2 years

1шт.

11

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 600 hours

1шт.

12

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary, Every 600 hours

1шт.

13

47509565

FILTER

Primary, Every 600 hours

1шт.

14

87638772

CARTRIDGE,165mm L

Brake Fluid Tank, Every 1200 hours or every 2 years

1шт.

Выбрано товаров: 22
