Запчасти Case IH PUMA 185 CVT (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

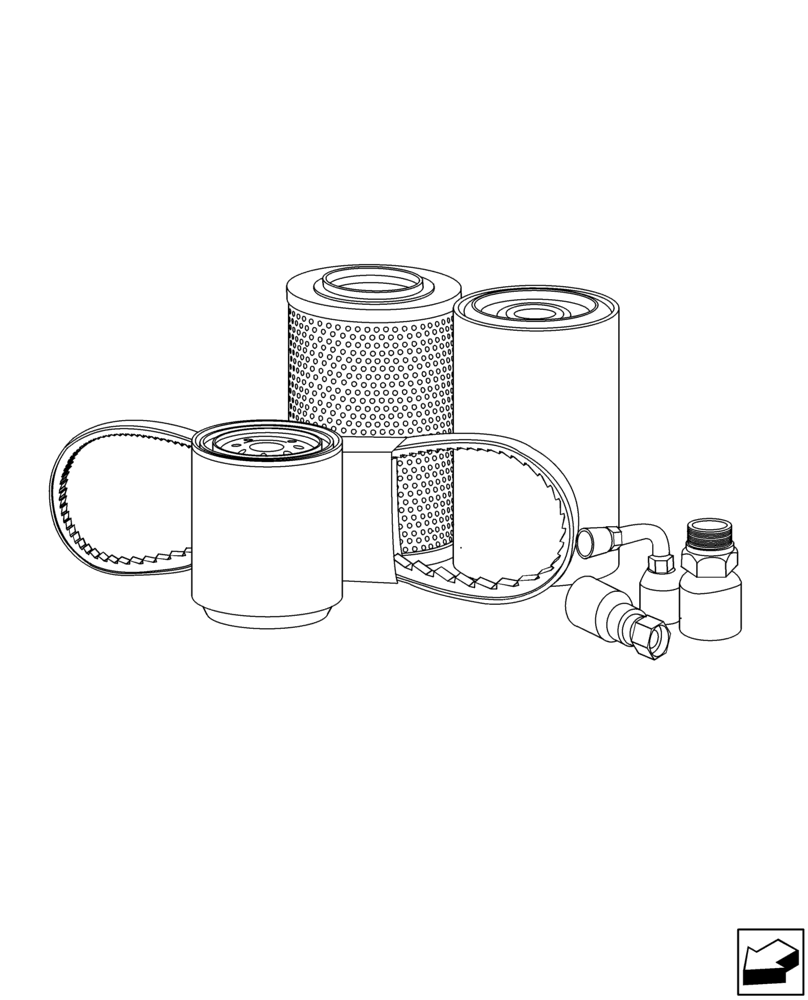

Схема запчастей Case IH PUMA 185 CVT - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

79081900

SENSOR

Air Cleaner Restrictor

1шт.

2

87482355

SENSOR

Air Cleaner

1шт.

3

4894139

PLUG,Hex Soc, M22 x 1.5

Drain, on Engine Oil Pan

1шт.

4

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

for Engine Oil Pan Drain Plug

1шт.

5

84383461

THERMOSTAT

1шт.

6

2853540

SENSOR

Water in Fuel

1шт.

7

2853552

SENSOR

Pressure, on Engine Oil Pump

1шт.

8

4897224

SENSOR

Thermosensor

1шт.

9

4890193

SENSOR

Engine Oil Prerssure & Temperature

1шт.

10

84233818

PRESSURE SWITCH

A/C Trinary

1шт.

11

84419250

PRESSURE SWITCH

A/C Low Pressure

1шт.

12

84169162

SENSOR

Speed, All Effect

1шт.

13

87395493

PRESSURE SWITCH

Transmission Oil

1шт.

14

47520142

SENSOR,1000mm L

Nh3

1шт.

15

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature Sensor

1шт.

16

47478995

SENSOR

Exhaust Temperature Sensor

1шт.

17

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

Nox

1шт.

18

87384755

SWITCH ASSY

for Hydraulic Trailer Brake

1шт.

19

87564377

SENSOR,M12 x 1.5

Pressure, for Pneumatic Trailer Brake

1шт.

20

82017871

RELAY,12V, 20A

Mini Iso

1шт.

21

10774590

BULB,H7, 12V, 55W

1шт.

22

139119A1

BULB,#886, 12V, 50W

Worklamp

1шт.

23

14148090

BULB,PY21W, 12V, 21W

Tail/Turn Signal, L/Cab

1шт.

24

44995162

BULB,T-3 1/4, 12.8V, 50W

Worklamp

1шт.

25

83990084

RELAY

40 Amp

1шт.

26

83990024

RELAY

for Trailer Brake Valve

1шт.

27

87561528

SWITCH ASSY

Ignition

1шт.

28

82030144

IGNITION KEY

Case IH

1шт.

29

9847313

BULB,#894, 12V, 37.5W

1шт.

30

529068

BULB,#1156, 12V, 21W

1шт.

31

81867061

BULB,12V, 21W

for Licence Plate Lamp

1шт.

32

87339422

RELAY,12V, 100A

Ignition Load

1шт.

33

82033971

FUSE,100A, Maxi, Violet

1шт.

34

84183837

FUSE,80A, Maxil, Natural

80A Maxifuses

1шт.

35

5190333

FUSE,40A, Maxi, Orange

1шт.

36

5173264

FUSE,30A, Maxi, Green

1шт.

37

84543528

RELAY,12V, 20A, Micro

Omron

1шт.

38

10401290

FUSE,25 amp Mini

1шт.

39

10402190

FUSE,30A, Mini

1шт.

40

10401190

FUSE,20A, Mini, Yellow

1шт.

41

87524877

FUSE,15A, Mini, Blue

1шт.

42

87522597

FUSE,10A, Mini, Red

1шт.

43

87522595

FUSE,7.5A, Mini, Brown

1шт.

44

10395890

FUSE,5A, Mini, Beige

1шт.

45

121850A1

FUSE,3A, Mini, Violet

1шт.

46

84253578

FUSE,20A

1шт.

47

82011380

RELAY

Front Wiper

1шт.

48

82011381

MODULE

Rear Wiper

1шт.

49

82013124

RELAY,12V, 30A

Power

1шт.

50

82030798

RELAY,12V, 70A

1шт.

51

14143790

BULB,12V, 1.2W

12V-1.2W

1шт.

52

14144690

BULB,P21/5W, 12V, 21/5W

Tail/Stop Signal, W/Cab

1шт.

53

529068

BULB,#1156, 12V, 21W

for Turn Light Indicator

1шт.

54

71421

BULB,R5W, 12V, 5W

1шт.

55

9703399

BULB,H3, 12V, 55W

1шт.

56

87577636

FLASHER UNIT

Except NA

1шт.

57

84414345

FLASHER UNIT

NA

1шт.

58

E35556

BULB,12V, 10W

for Dome Light

1шт.

59

82003147

BULB,Festoon C11, 12V, 10W

12V-10W, for Dome Light

1шт.

60

14149590

BULB,12V, 10W

1шт.

61

83982680

RELAY

Turn Signal Converter (ISO)

1шт.

62

87745842

PRESSURE SWITCH

Engine Oil

1шт.

63

7525171

RELAY,Mini, 12V, 20A

Worklamps, 20A

1шт.

64

84142375

PARK BRAKE SWITCH

Handbrake Warning

1шт.

65

86616248

BULB,H1, 12V, 55W

for Beacon Light

1шт.

66

47132449

SWITCH

Brake Contactor

1шт.

67

82025340

RESTRICTION SWITCH

Vacuum Switch

1шт.

68

87564684

SWITCH ASSY

Oil Pressure, on CCLS Pump

1шт.

69

87564763

SENSOR

PTO Speed

1шт.

Выбрано товаров: 69
