Запчасти Case IH PUMA 185 CVT (50.100.AP[03]) - VAR - 391177, 391299, 391357, 759264, 759266 - AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL

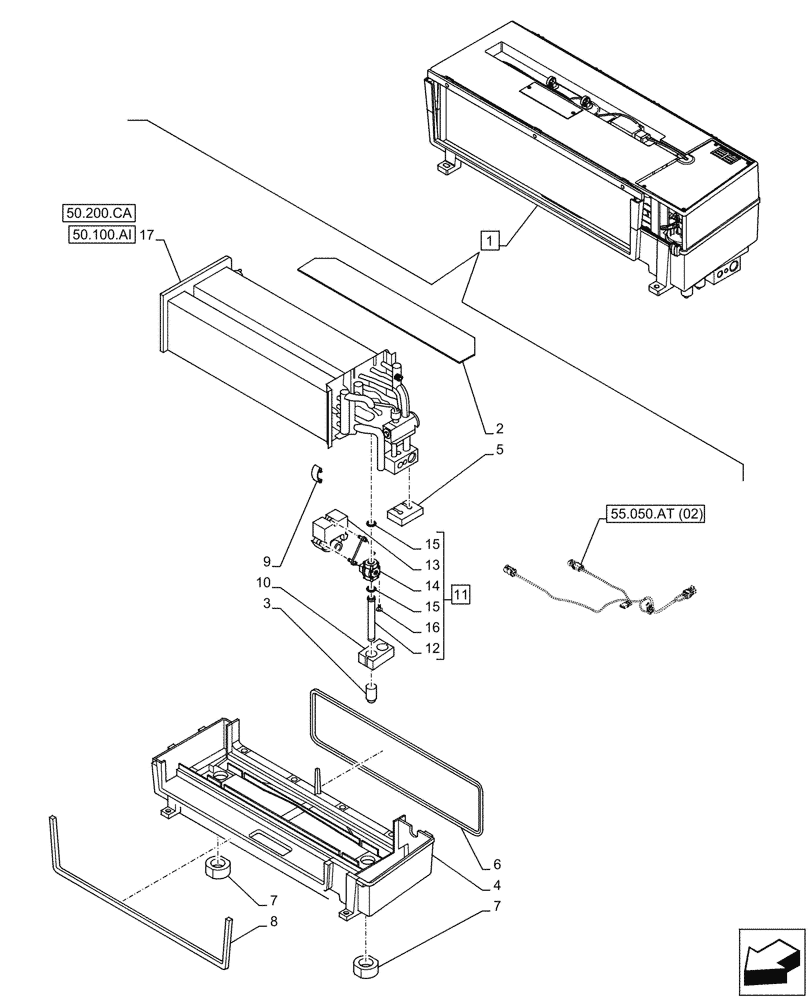

Схема запчастей Case IH PUMA 185 CVT - (50.100.AP[03]) - VAR - 391177, 391299, 391357, 759264, 759266 - AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL
55.050.at (02)
8
11
7
7
13
4
12
3
6
16
15
9
15
17
2
1
10
14
50.100.ai
5
50.200.ca

Артикул

Название

Примечание

Количество

1

47490413

AIR CONDITIONER

ASSY, Mechanical with Electric Water, Incl 2 - 17

1шт.

See also Air Conditioner Components in Figure 50.100.AP (02), 55.050.AT (02), 50.200.CA, 50.100.AI

1шт.

2

82033453

PLATE

1шт.

3

82033261

CAP,5/8"

2шт.

4

82033005

HOUSING

1шт.

5

82028953

SEAL

1шт.

6

82024750

SEAL,1235mm L x 5mm Thk

1шт.

7

82028942

SEAL,32mm ID x 48mm OD x20mm Thk

2шт.

8

82023564

SEAL,765.6mm L x 8mm Thk

1шт.

9

82024392

CLIP,7mm W

4шт.

10

82028943

SEAL,20mm Thk

1шт.

11

87540537

SHUT-OFF VALVE

ASSY, Incl 12 - 16

1шт.

12

87540534

PIPE

1шт.

13

87541625

ACTUATOR

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

1шт.

15

82037703

O-RING,3.17mm Thk x 15.88mm ID

1шт.

16

82037676

SCREW,Torx, Pan HD, 10 x 7

4шт.

17

82037665

AIR CONDITIONER

ASSY

1шт.

Выбрано товаров: 18
