Запчасти Case IH PUMA 185 CVT (50.100.AC[02]) - VAR - 391130, 758000 - HEATER, LINE (50) - CAB CLIMATE CONTROL

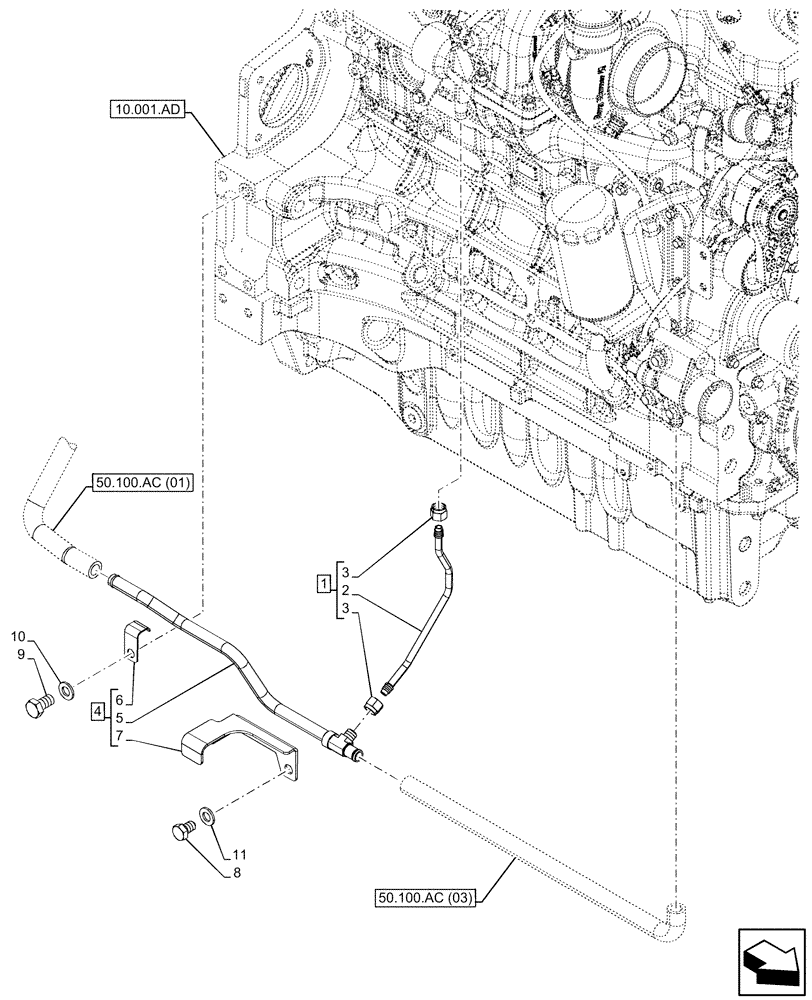

Схема запчастей Case IH PUMA 185 CVT - (50.100.AC[02]) - VAR - 391130, 758000 - HEATER, LINE (50) - CAB CLIMATE CONTROL
50.100.ac (03)
3
1
10
9
11
8
5
3
4
6
7
2
10.001.ad
50.100.ac (01)

Артикул

Название

Примечание

Количество

1

47714248

PIPE

ASSY, 203mm, from Engine to Heater Line, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

11260311

TUBE NUT,M14 x 1.5mm, 8 ZND

2шт.

4

47719154

PIPE

ASSY, Tube from Engine to HVAC Unit, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Heater Tube, from Engine to HVAC Unit, Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Heater Tube Bracket RH, Incl in 4

1шт.

7

NSS

NOT SOLD SEPARAT

Heater Tube Bracket LH, Incl in 4

1шт.

8

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

9

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

1шт.

10

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

1шт.

11

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

Выбрано товаров: 11
