(41.216.AV[12]) - VAR - 338321, 338322, 338326, 338327, 338330, 338332, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - STEERING CYLINDER, LINE, AUTOGUIDANCE, CVT

Запчасти Case IH PUMA 185 CVT (41.216.AV[12]) - VAR - 338321, 338322, 338326, 338327, 338330, 338332, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - STEERING CYLINDER, LINE, AUTOGUIDANCE, CVT (41) - STEERING

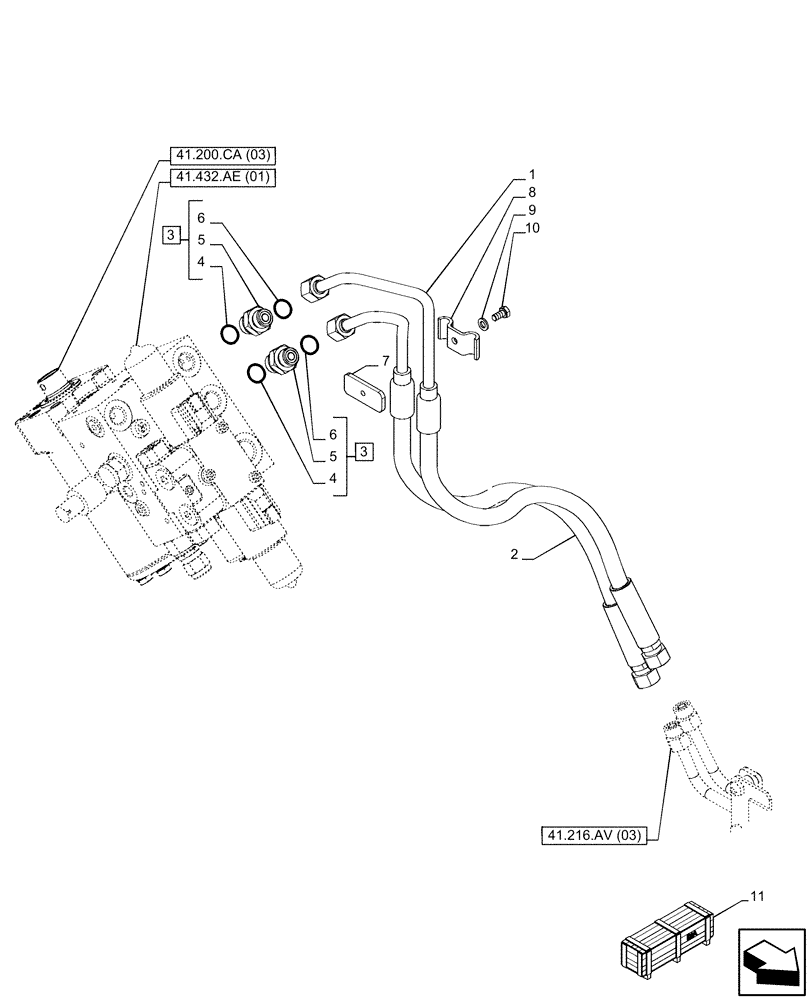

Схема запчастей Case IH PUMA 185 CVT - (41.216.AV[12]) - VAR - 338321, 338322, 338326, 338327, 338330, 338332, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - STEERING CYLINDER, LINE, AUTOGUIDANCE, CVT (41) - STEERING
41.216.av (03)
4
3
4
11
7
6
6
9
10
3
5
5
1
2
8
41.200.ca (03)
41.432.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47659773

PIPE

Autoguidance to Axle

1шт.

2

47659731

PIPE

Autoguidance to Axle

1шт.

3

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

ASSY, Incl 4 (Qty 1), 6 (Qty 1)

2шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

7

84591886

PLATE

Fixing Pipes

1шт.

8

4999554

CLAMP,2 Hoses

Cylinder Pipes

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

11

710070374

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

710070394

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

710070414

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
