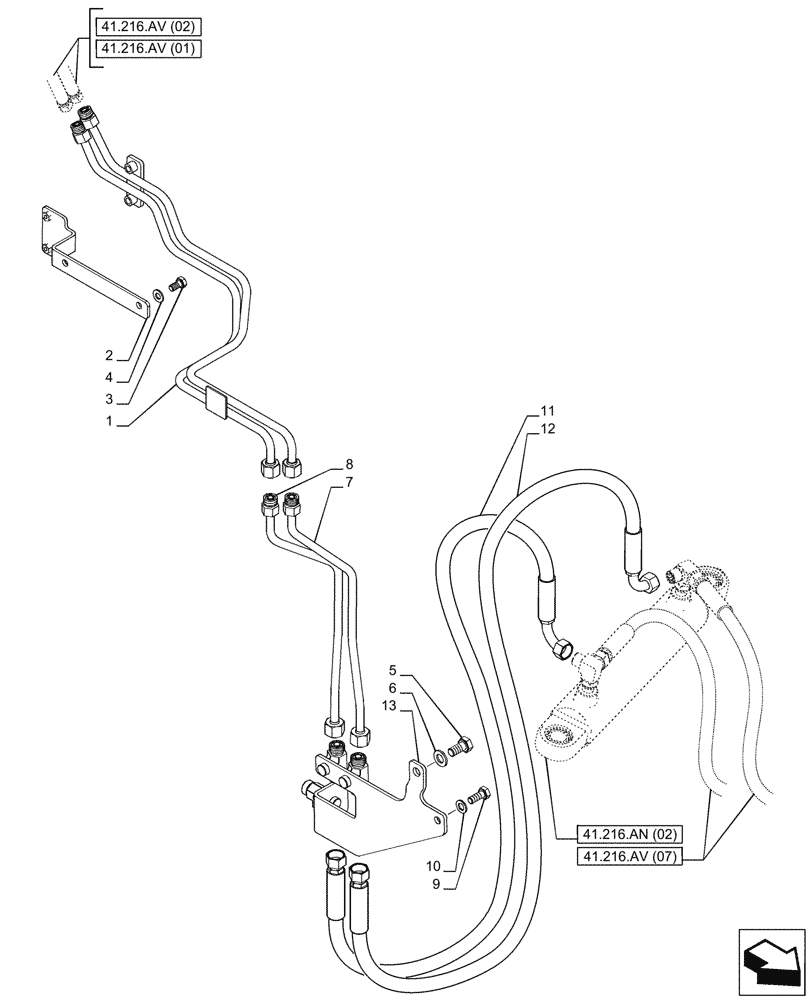

Запчасти Case IH PUMA 185 CVT (41.216.AV[04]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, STEERING CYLINDER HYD. LINE (41) - STEERING

1

47567674

PIPE

Steering Cylinder

1шт.

2

47638042

BRACKET

1шт.

3

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

47609992

PIPE

Steering Cylinder, Rod Side

1шт.

8

47610021

PIPE

Steering Cylinder, Head Side

1шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

47360803

HOSE

Steering Cylinder, Head Side

1шт.

12

47437807

HYDRAULIC HOSE

Steering Cylinder, Rod Side

1шт.

13

47674454

SUPPORT

1шт.
