(41.216.AN[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, STEERING CYLINDER

Запчасти Case IH PUMA 185 CVT (41.216.AN[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, STEERING CYLINDER (41) - STEERING

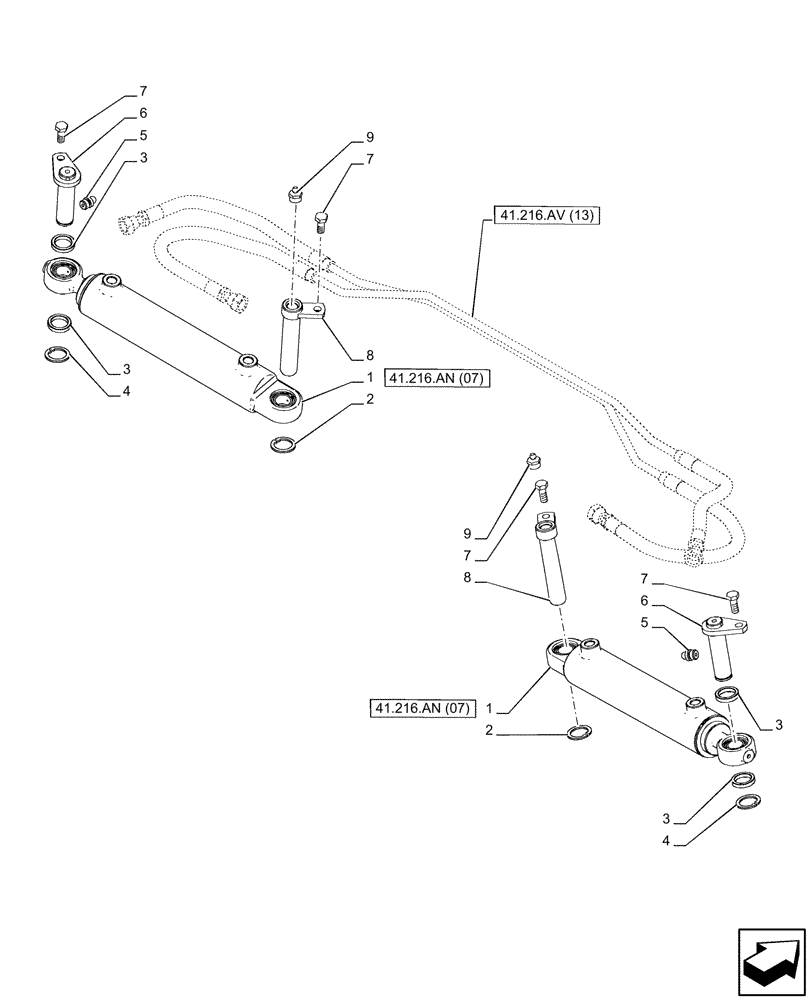

Схема запчастей Case IH PUMA 185 CVT - (41.216.AN[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, STEERING CYLINDER (41) - STEERING
41.216.av (13)
8
2
3
7
3
4
7
5
3
7
1
4
9
5
7
6
8
6
3
9
2
1
41.216.an (07)
41.216.an (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

2шт.

2

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

1шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

5171707

PIN,24.97mm OD x 91mm L

2шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.
