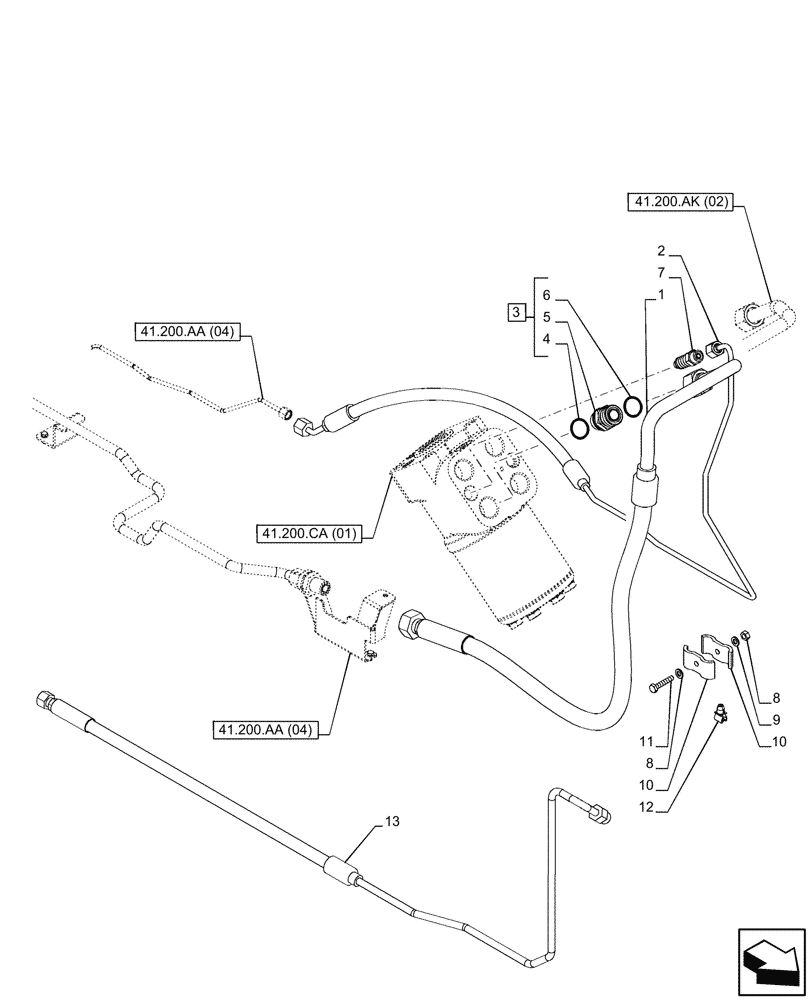

Запчасти Case IH PUMA 185 CVT (41.200.AA[03]) - VAR - 338320, 391347 - STEERING VALVE, LINE - CVT (41) - STEERING

1

47377444

PIPE

Supply to Steering Motor

1шт.

2

47378234

PIPE

LS Steering

1шт.

3

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 4 - 6

1шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

7

87480170

HYD CONNECTOR,9/16" - 18 ORFS x M10 x 1 ORB

1шт.

8

9706755

NUT,M6, Cl 8

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

5180153

BRACKET

Pipes

2шт.

11

10902921

SCREW,Hex, M6 x 32mm, Cl 8.8

1шт.

12

87710266

CLIP,6mm

Trailer Brakes

1шт.

13

84203518

PIPE

Steering Load Sense

1шт.
