(41.101.AF[03]) - VAR - 338320, 338321, 338322, 338326, 338327, 338330, 338332, 758805, 758806, 758807, 758871 - STEERING COLUMN

Запчасти Case IH PUMA 185 CVT (41.101.AF[03]) - VAR - 338320, 338321, 338322, 338326, 338327, 338330, 338332, 758805, 758806, 758807, 758871 - STEERING COLUMN (41) - STEERING

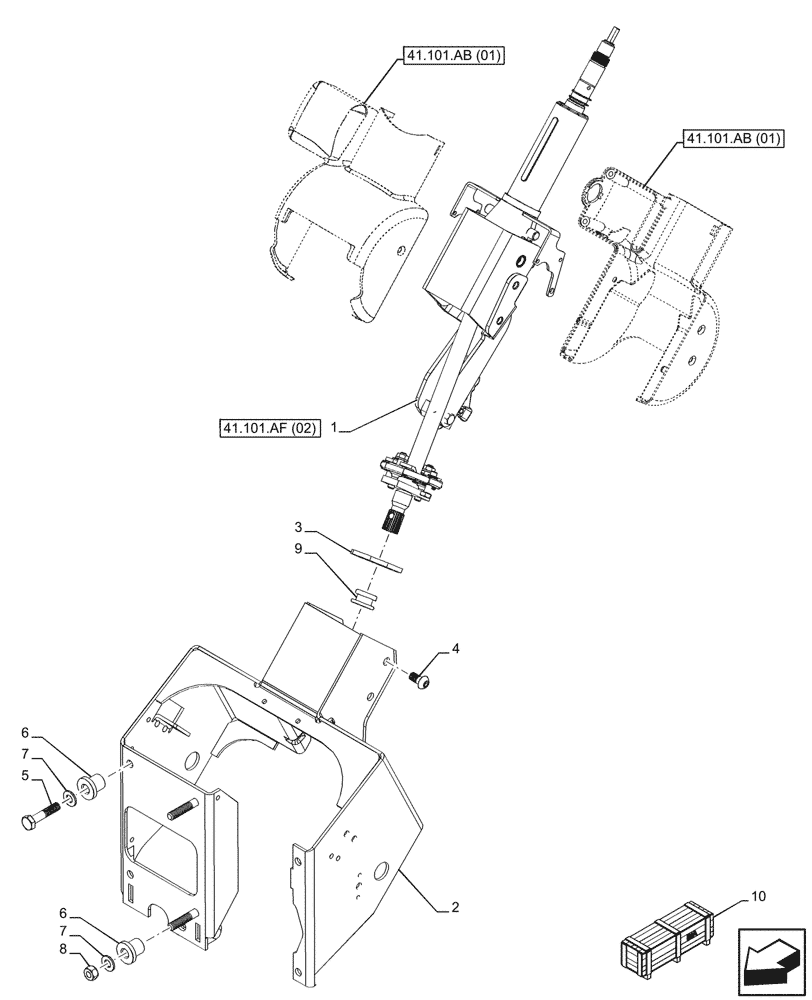

Схема запчастей Case IH PUMA 185 CVT - (41.101.AF[03]) - VAR - 338320, 338321, 338322, 338326, 338327, 338330, 338332, 758805, 758806, 758807, 758871 - STEERING COLUMN (41) - STEERING
41.101.ab (01)
2
1
8
7
4
5
7
6
6
10
3
9
41.101.ab (01)
41.101.af (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47383940

STEERING COLUMN,Tilting, Telescoping

Tele DPT

1шт.

2

84598289

BRACKET

Pedal Box ABS

1шт.

3

81873344

RUBBER INSULATOR

1шт.

4

87028324

HEX SOC SCREW,BTN HD, M10 x 1.5 x 20mm, Cl 8.8

4шт.

5

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

6

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

9

82009429

ISOLATOR

4шт.

10

710070374

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

710070394

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

710070414

DIA KIT, TRACTOR

Autoguidance System, Incl 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
