(35.162.AB[03]) - VAR - 758092, 758246 - 3 POINT HITCH, FRONT, W/ COUPLER, CYLINDER

Запчасти Case IH PUMA 185 CVT (35.162.AB[03]) - VAR - 758092, 758246 - 3 POINT HITCH, FRONT, W/ COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS

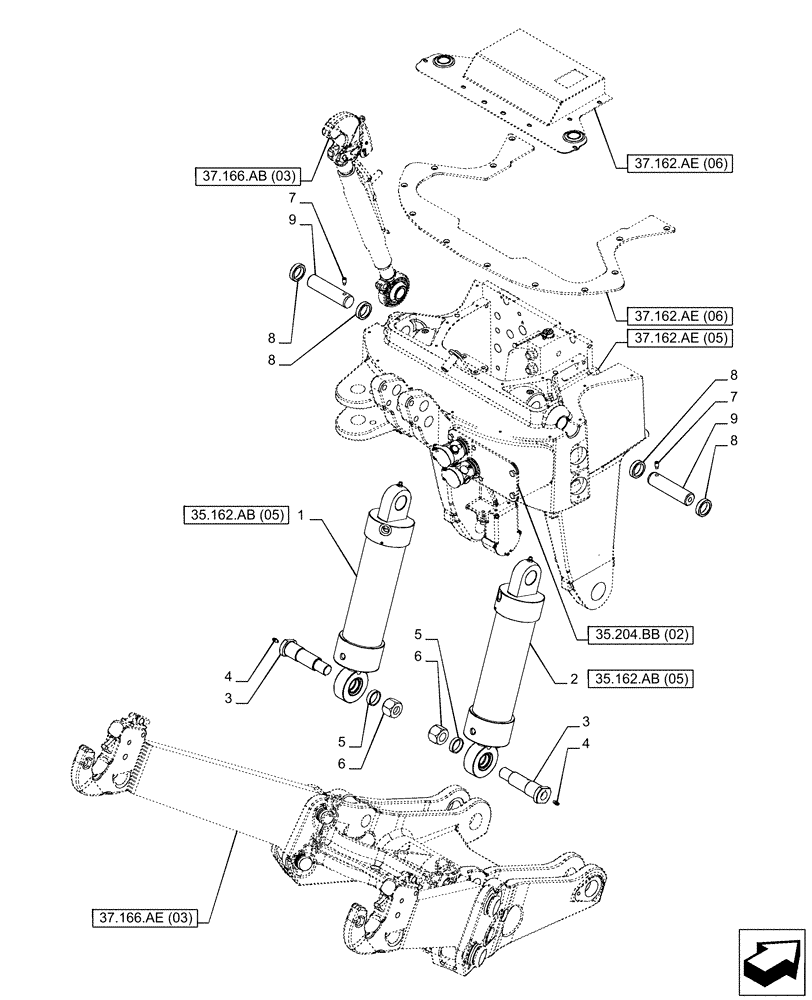

Схема запчастей Case IH PUMA 185 CVT - (35.162.AB[03]) - VAR - 758092, 758246 - 3 POINT HITCH, FRONT, W/ COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS
8
2
3
3
8
37.162.ae (06)
7
37.162.ae (06)
5
37.162.ae (05)
9
5
1
4
8
35.204.bb (02)
4
6
7
8
37.166.ae (03)
37.166.ab (03)
35.162.ab (05)
35.162.ab (05)
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84470637

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

RH

1шт.

2

84486252

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

LH

1шт.

3

84472397

HITCH PIN

Upper

2шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

5

84370963

SPACER

2шт.

6

86639243

NUT,M24 x 3, Cl 8

M24

2шт.

7

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

8

84473048

SPACER

4шт.

9

84472936

PIN

Lower

2шт.

Выбрано товаров: 9
