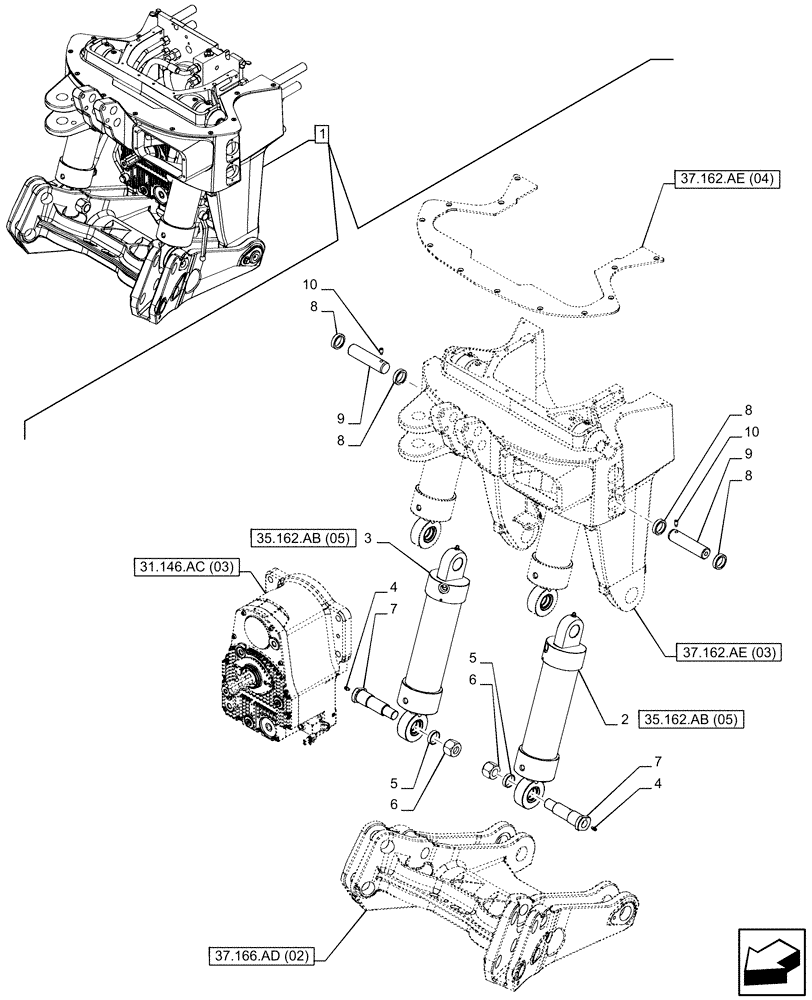

Запчасти Case IH PUMA 185 CVT (35.162.AB[02]) - VAR - 758091, 758245 - 3 POINT HITCH, FRONT, W/ PTO, W/O COUPLING, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84474238

HITCH

ASSY, Incl 2 - 10

1шт.

See also Figure 31.142.AF (01), 31.146.AC (03), 35.160.AF (02), 35.160.AK (03), 35.162.AG (02), 37.162.AE (03), 37.162.AE (04), 37.166.AD (01), 55.160.AP (04)

1шт.

2

84486252

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

ASSY, LH

1шт.

3

84470637

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

ASSY, RH

1шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

5

84370963

SPACER

2шт.

6

86639243

NUT,M24 x 3, Cl 8

2шт.

7

84472397

HITCH PIN

Upper

2шт.

8

84473048

SPACER

4шт.

9

84472936

PIN

Lower

2шт.

10

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.
