Запчасти Case IH PUMA 185 CVT (35.100.AZ[01]) - VAR - 391161, 758056 - PRIORITY VALVE (35) - HYDRAULIC SYSTEMS

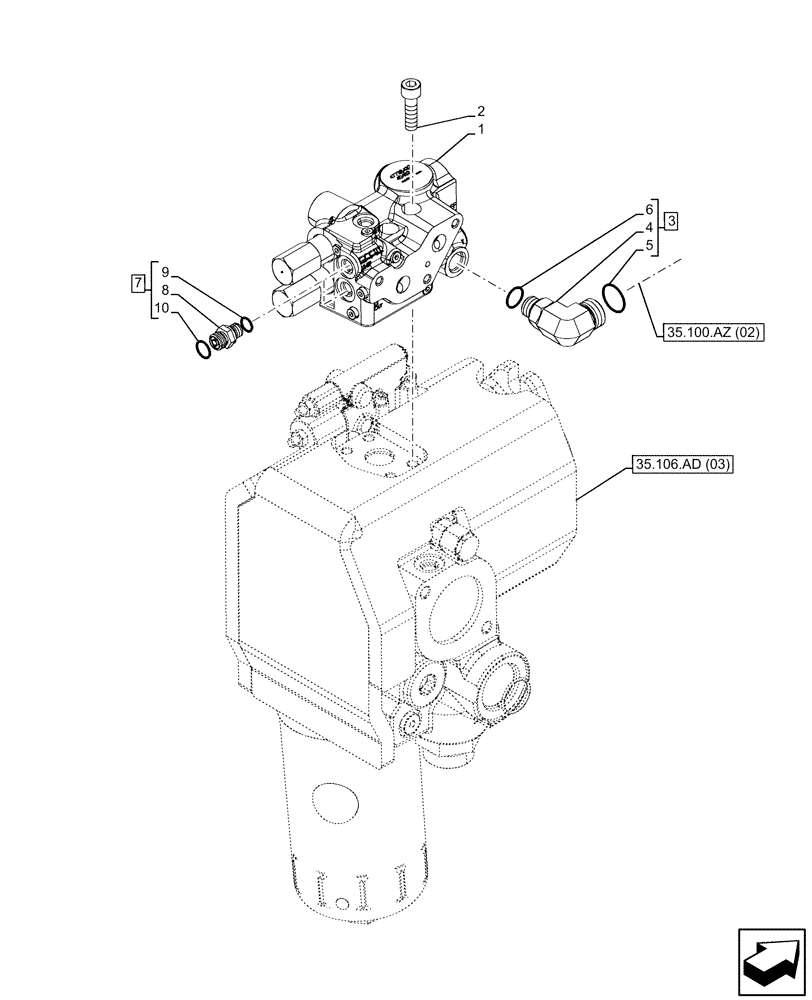

Схема запчастей Case IH PUMA 185 CVT - (35.100.AZ[01]) - VAR - 391161, 758056 - PRIORITY VALVE (35) - HYDRAULIC SYSTEMS
35.100.az (02)
10
8
7
9
4
6
5
1
2
3
35.106.ad (03)

Артикул

Название

Примечание

Количество

1

47738432

VALVE

1шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

5185562

ELBOW

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 10
