Запчасти Case IH PUMA 185 CVT (33.350.AT[01]) - VAR - 337481, 337482, 337488, 337491 - ANTILOCK BRAKING SYSTEM (ABS), REAR, BRAKE LINE (33) - BRAKES & CONTROLS

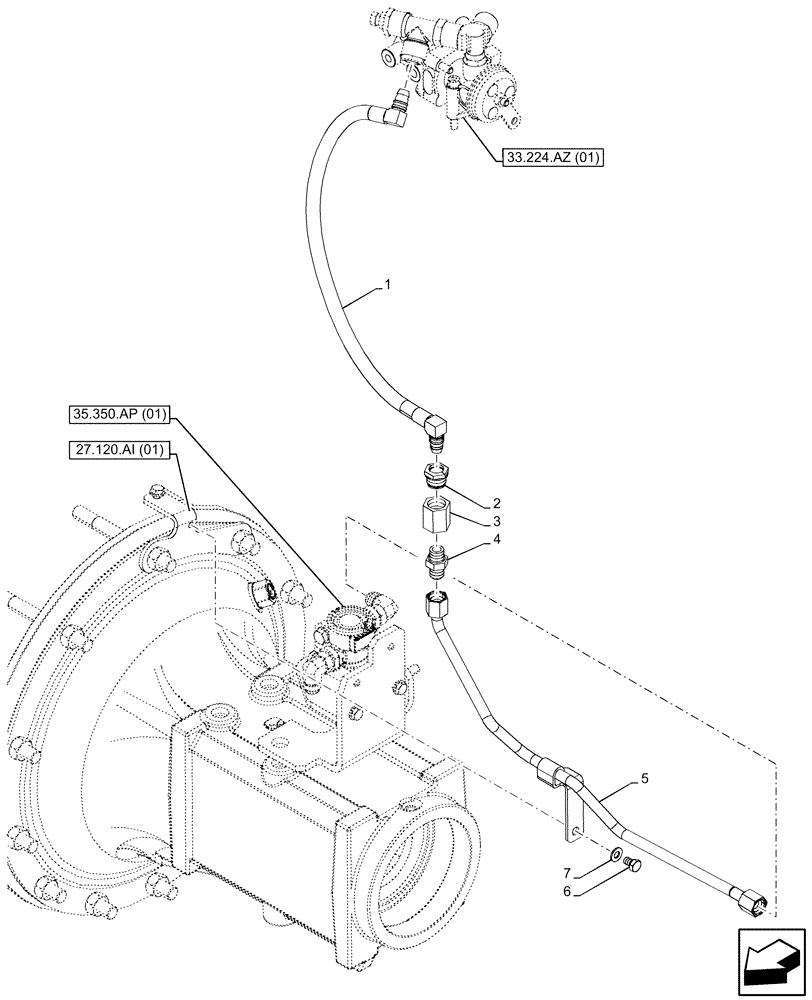

Схема запчастей Case IH PUMA 185 CVT - (33.350.AT[01]) - VAR - 337481, 337482, 337488, 337491 - ANTILOCK BRAKING SYSTEM (ABS), REAR, BRAKE LINE (33) - BRAKES & CONTROLS
33.224.az (01)
6
27.120.ai (01)
4
5
7
2
1
35.350.ap (01)
3

Артикул

Название

Примечание

Количество

1

47390958

TUBE

From Pneumatic Valve To ABS

1шт.

2

82036156

FITTING,M22 x 1.5 x NG12

1шт.

3

84174059

HYD CONNECTOR

1шт.

4

84181658

HYD CONNECTOR

1шт.

5

47389585

PIPE

From Pneumatic Valve To ABS

1шт.

6

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 7
