Запчасти Case IH PUMA 185 CVT (33.350.AP[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), PNEUMATIC VALVE, PRESSURE LIMITER (33) - BRAKES & CONTROLS

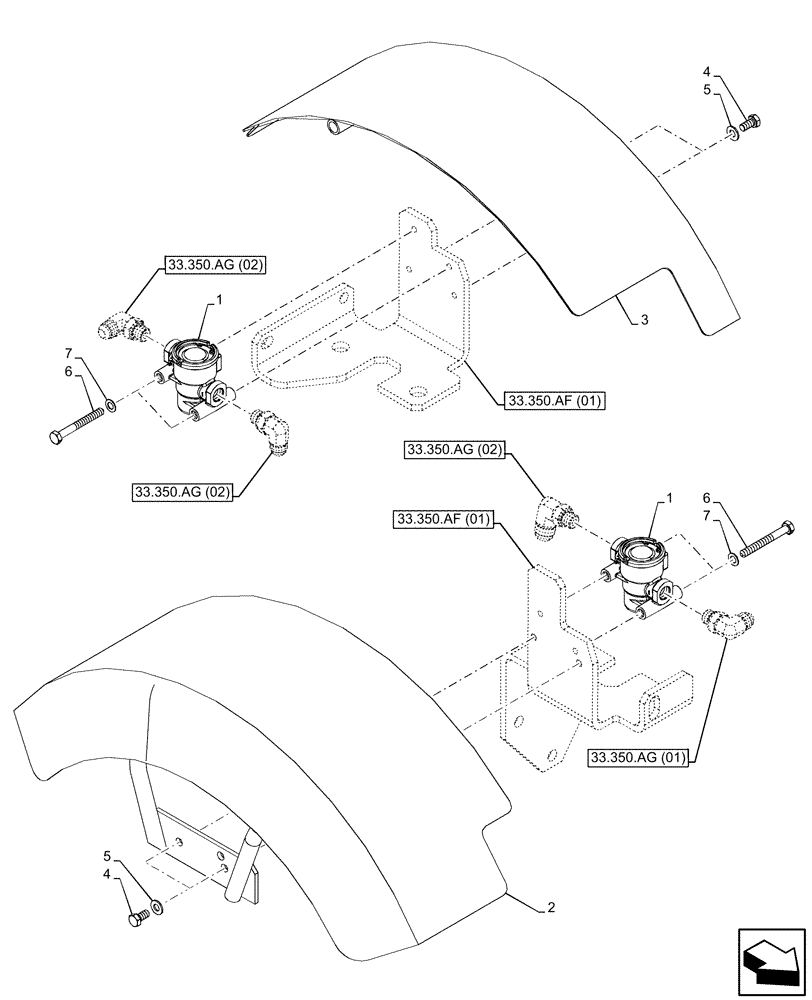

Схема запчастей Case IH PUMA 185 CVT - (33.350.AP[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), PNEUMATIC VALVE, PRESSURE LIMITER (33) - BRAKES & CONTROLS
33.350.af (01)
7
1
6
5
1
3
4
2
5
7
6
4
33.350.ag (01)
33.350.ag (02)
33.350.ag (02)
33.350.ag (02)
33.350.af (01)

Артикул

Название

Примечание

Количество

1

84394097

PRESSURE LIMITER

2шт.

2

47426128

FENDER

RH

1шт.

3

84533227

GUARD

LH

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

6

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

4шт.

7

12601379

WAVE WASHER,Wave, M8.4

4шт.

Выбрано товаров: 7
