Запчасти Case IH PUMA 185 CVT (33.224.AZ[08]) - VAR - 337484, 337487 - PNEUMATIC TRAILER BRAKE, QUICK-RELEASE, VALVE, ITALY (33) - BRAKES & CONTROLS

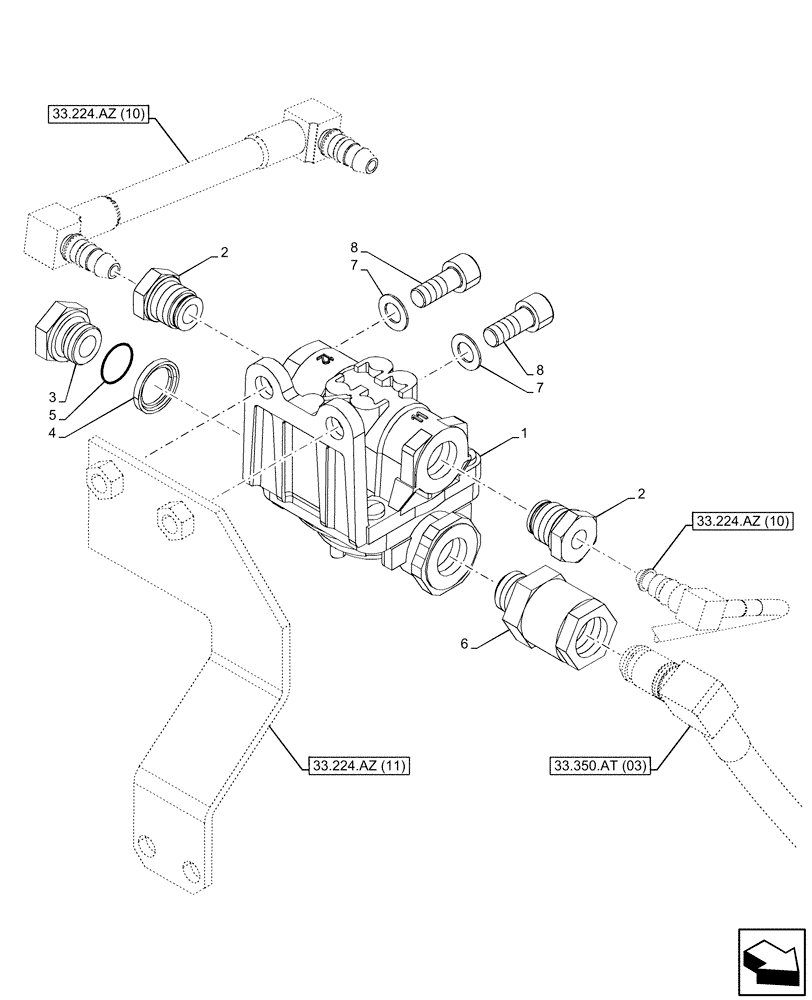

Схема запчастей Case IH PUMA 185 CVT - (33.224.AZ[08]) - VAR - 337484, 337487 - PNEUMATIC TRAILER BRAKE, QUICK-RELEASE, VALVE, ITALY (33) - BRAKES & CONTROLS
33.224.az (11)
5
4
8
3
7
2
7
8
2
1
6
33.224.az (10)
33.224.az (10)
33.350.at (03)

Артикул

Название

Примечание

Количество

1

84157669

VALVE

1шт.

2

87588079

HYD CONNECTOR,M16 x 1.5

3шт.

3

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

4

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

5

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

6

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

7

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

Выбрано товаров: 8
