Запчасти Case IH PUMA 185 CVT (33.224.AZ[07]) - VAR - 337481, 337482, 758038, 758039 - PNEUMATIC TRAILER BRAKE, PIPE (33) - BRAKES & CONTROLS

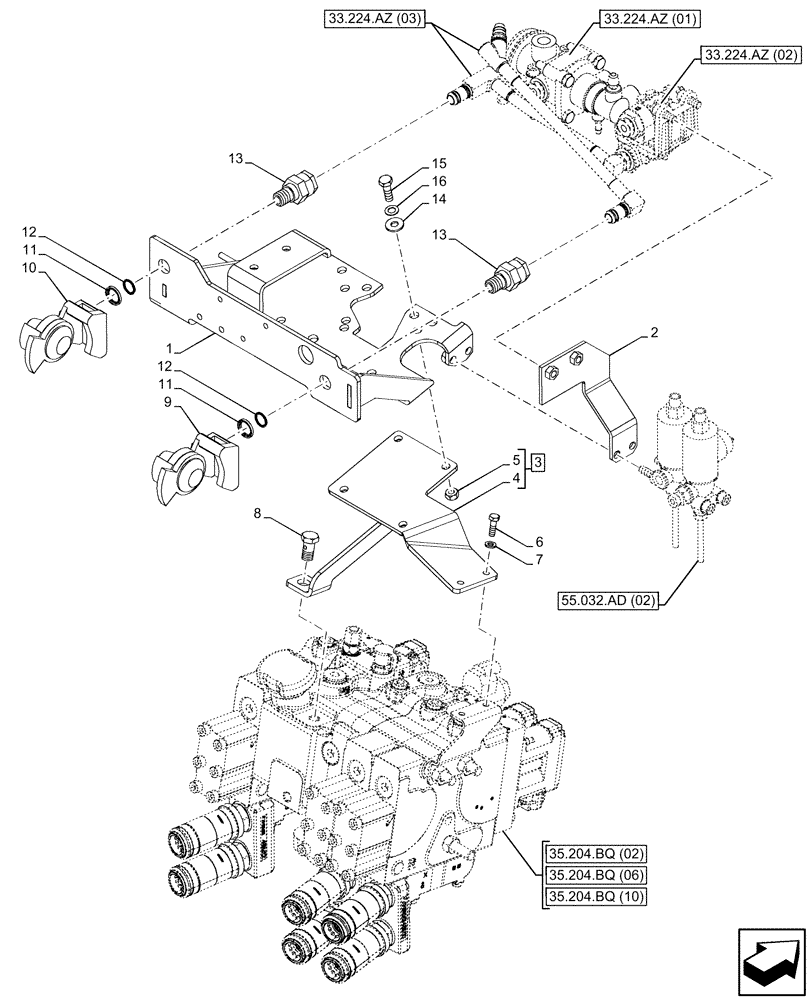

Схема запчастей Case IH PUMA 185 CVT - (33.224.AZ[07]) - VAR - 337481, 337482, 758038, 758039 - PNEUMATIC TRAILER BRAKE, PIPE (33) - BRAKES & CONTROLS
35.204.bq (06)
6
13
12
11
5
10
14
12
7
13
8
15
4
11
9
1
16
3
2
33.224.az (02)
33.224.az (01)
33.224.az (03)
55.032.ad (02)
35.204.bq (02)
35.204.bq (10)

Артикул

Название

Примечание

Количество

1

84157689

SUPPORT

1шт.

2

84143167

SUPPORT

1шт.

3

87554135

SUPPORT

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Incl in 3

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

6

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

9

82001019

COUPLING

1шт.

10

82001020

COUPLING

1шт.

11

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

12

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

13

87678128

ADAPTER

2шт.

14

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

15

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

Выбрано товаров: 16
