Запчасти Case IH PUMA 185 CVT (33.220.AM[02]) - VAR - 758040, 758042 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, BRAKE VALVE, ITALY (33) - BRAKES & CONTROLS

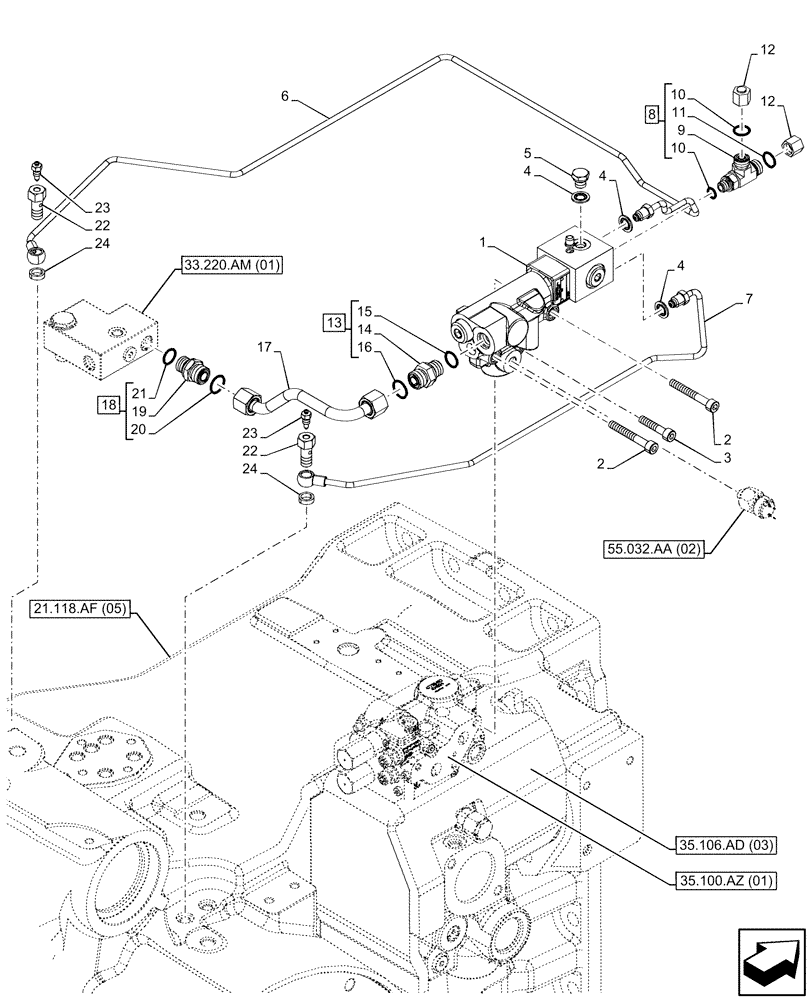

Схема запчастей Case IH PUMA 185 CVT - (33.220.AM[02]) - VAR - 758040, 758042 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, BRAKE VALVE, ITALY (33) - BRAKES & CONTROLS
21.118.af (05)
21
1
16
17
23
5
24
4
2
14
7
8
6
19
22
4
15
24
12
18
10
4
2
11
23
13
12
9
3
20
10
35.106.ad (03)
22
55.032.aa (02)
33.220.am (01)
35.100.az (01)

Артикул

Название

Примечание

Количество

1

87607363

BRAKE VALVE

1шт.

2

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

5

47131496

PLUG,Hex, M12 x 1

2шт.

6

84326329

PIPE

LH, Trailer Brake Valve

1шт.

7

87608326

BRAKE LINE

RH, Trailer Brake Valve

1шт.

8

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Tee, Incl in 8

1шт.

10

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

2шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

12

87668376

CAP,9/16"-18 Inch THD

2шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

87608337

PIPE

1шт.

18

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

ASSY, Incl 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

22

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

23

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

24

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

Выбрано товаров: 24
