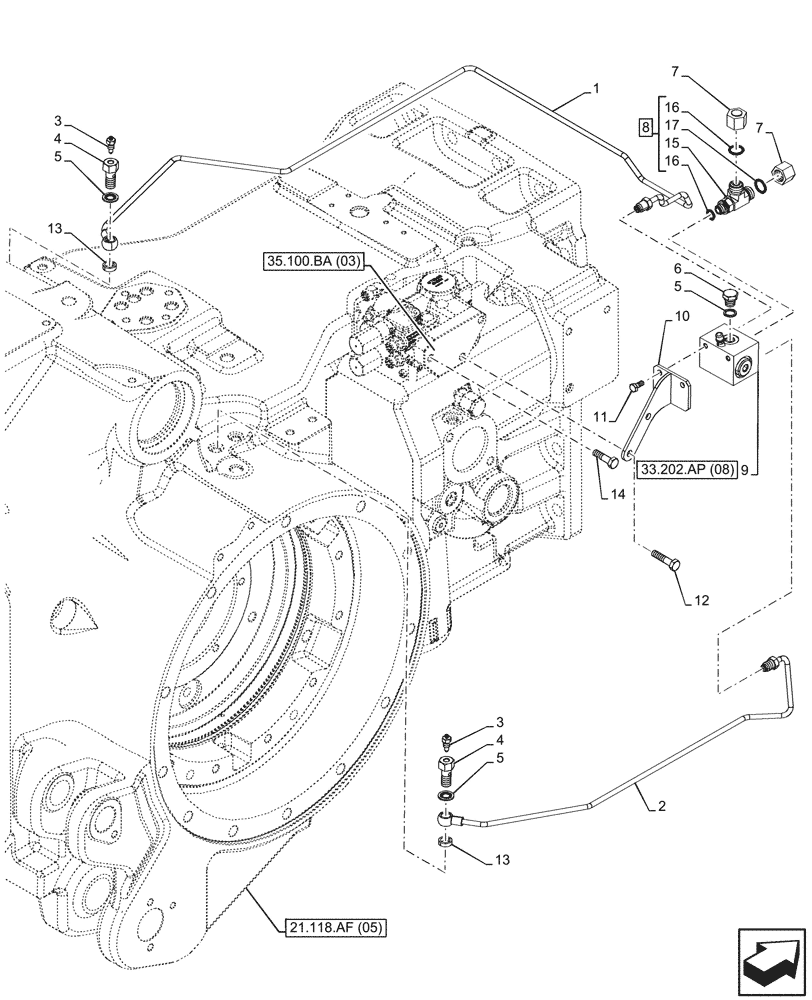

Запчасти Case IH PUMA 185 CVT (33.202.AP[03]) - VAR - 391155, 758038, 758041, 758043 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, LINE (33) - BRAKES & CONTROLS

1

84326329

PIPE

LH, Trailer Brake Valve

1шт.

2

87608326

BRAKE LINE

RH, Trailer Brake Valve

1шт.

3

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

4

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

5

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

3шт.

6

47131496

PLUG,Hex, M12 x 1

1шт.

7

9625546

CAP,11/16" - 16 ORFS

2шт.

8

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

ASSY, Incl 15 -17

1шт.

9

87323483

HEAD

ASSY

1шт.

10

87682609

SUPPORT

1шт.

11

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

12

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

14

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

15

NSS

NOT SOLD SEPARAT

Tee, Incl in 8

1шт.

16

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

2шт.

17

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.
