Запчасти Case IH PUMA 185 CVT (31.114.AI[01]) - VAR - 391145, 758028, 758031, 758032 - PTO 540/1000 RPM, PTO 540E/1000 RPM, PTO 1000/1000E RPM, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

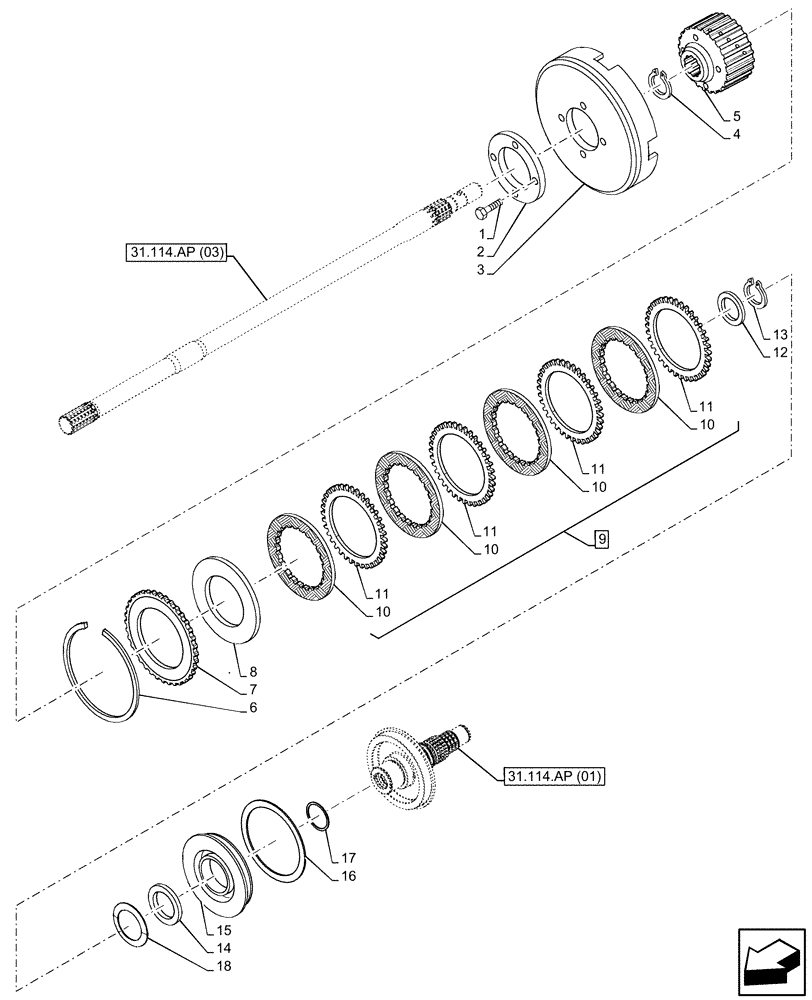

Схема запчастей Case IH PUMA 185 CVT - (31.114.AI[01]) - VAR - 391145, 758028, 758031, 758032 - PTO 540/1000 RPM, PTO 540E/1000 RPM, PTO 1000/1000E RPM, CLUTCH (31) - IMPLEMENT POWER TAKE OFF
31.114.ap (01)
18
17
9
13
15
11
3
11
14
8
16
4
1
10
10
11
7
10
12
2
6
10
5
11
31.114.ap (03)

Артикул

Название

Примечание

Количество

1

84465518

SCREW

4шт.

2

84382729

SPACER

1шт.

3

84382726

COVER,192mm OD x 31mm W

1шт.

4

11068076

SNAP RING,M32, Ext

1шт.

5

84382728

HUB

1шт.

6

5162251

CIRCLIP,142.5mm ID

1шт.

7

5198772

CLUTCH PLATE,94.5mm ID x 152.6mm OD x 9.5mm Thk

1шт.

8

81864341

SPRING,148.35mm ID

8шт.

9

5198796

CLUTCH PLATE,31.2mm Thk

ASSY, Incl 10, 11

1шт.

10

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

8шт.

11

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

99.00mm ID x 152.60mm OD x 2.00mm

1шт.

11

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

1шт.

12

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

13

5191305

CIRCLIP,54mm ID

1шт.

14

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

15

5182697

PISTON

1шт.

16

5182703

GASKET,119.55mm ID x 127mm OD x 3.2mm Thk

1шт.

17

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

18

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

12шт.

Выбрано товаров: 19
