Запчасти Case IH PUMA 185 CVT (31.114.AF[02]) - VAR - 338178, 338181, 338182, 338183, 338184, 391141, 391145, 758025, 758028, 758029, 758031, 758032 - PTO, 2-SPEED (540/1000, 540E/1000, 1000/1000E), OUTPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF

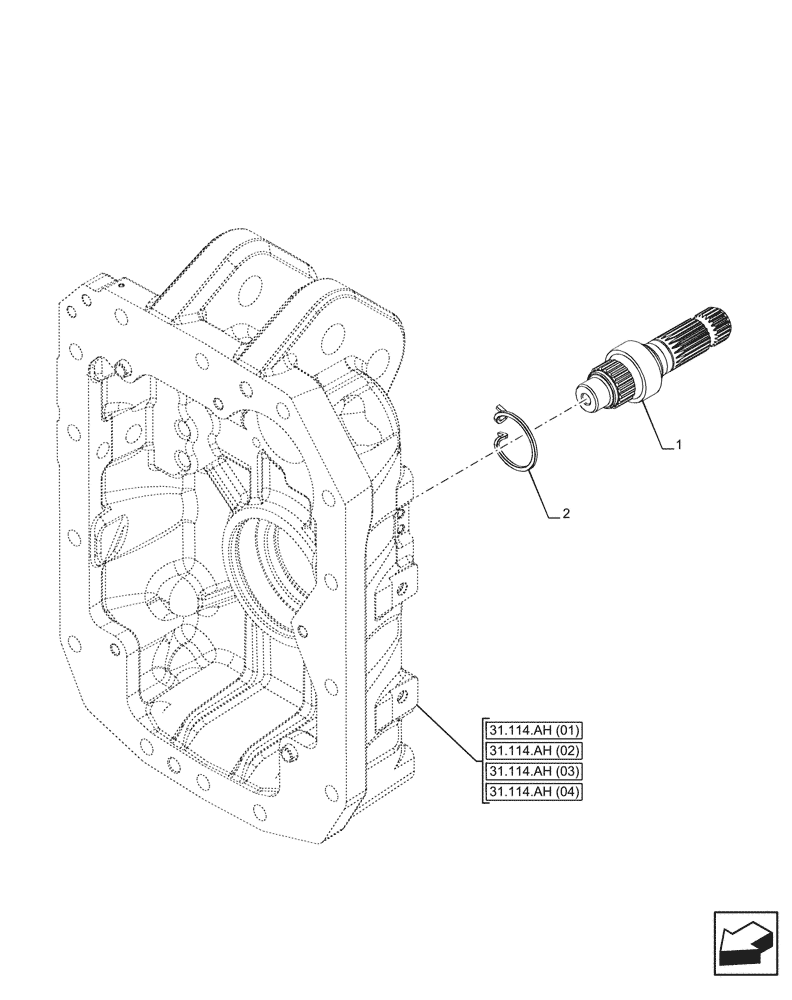

Схема запчастей Case IH PUMA 185 CVT - (31.114.AF[02]) - VAR - 338178, 338181, 338182, 338183, 338184, 391141, 391145, 758025, 758028, 758029, 758031, 758032 - PTO, 2-SPEED (540/1000, 540E/1000, 1000/1000E), OUTPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF
31.114.ah (01)
1
2
31.114.ah (03)
31.114.ah (02)
31.114.ah (04)

Артикул

Название

Примечание

Количество

1

47130743

PTO SHAFT,6T Splines, 182mm L

Output 540 rpm, 20 Spline

1шт.

1

47130744

PTO SHAFT,21T, 20T, 182mm L

Output 1000 rpm, 21 Spline

1шт.

1

47132584

PTO SHAFT

Output 1000 rpm, 20 Spline

1шт.

2

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

Выбрано товаров: 4
