Запчасти Case IH PUMA 185 CVT (27.120.AR[02]) - VAR - 337418, 337420, 337422, 337425, 391159, 758052, 758053, 758054, 758162 - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM

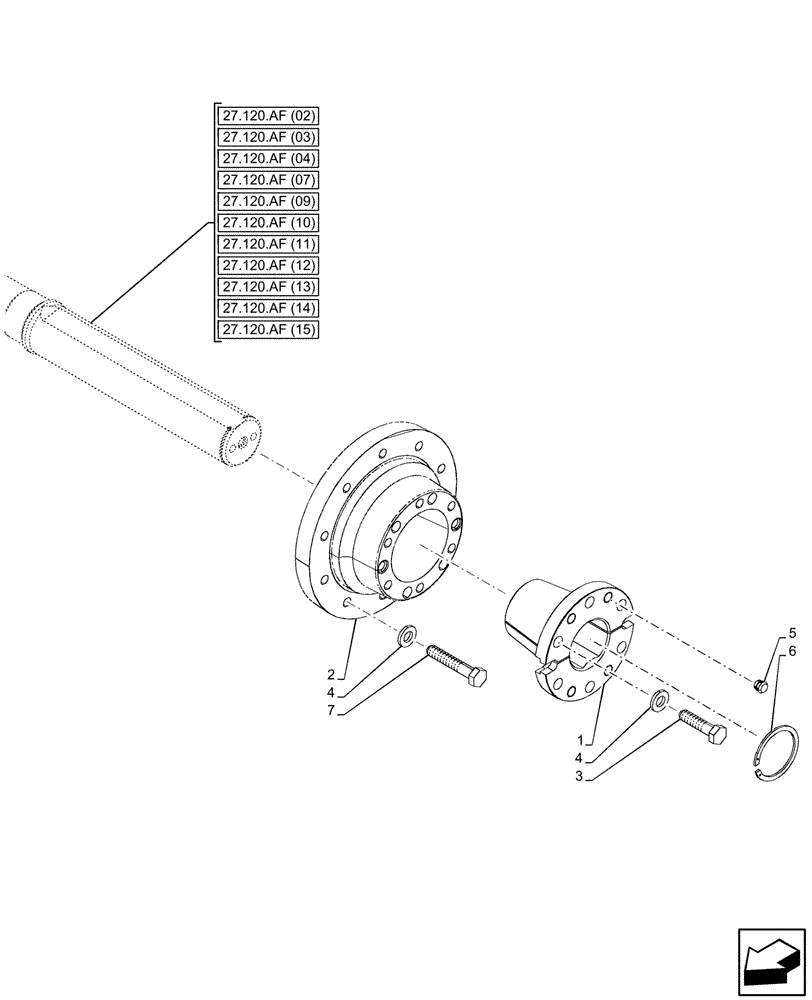

Схема запчастей Case IH PUMA 185 CVT - (27.120.AR[02]) - VAR - 337418, 337420, 337422, 337425, 391159, 758052, 758053, 758054, 758162 - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM
27.120.af (14)
6
5
2
3
4
4
7
1
27.120.af (09)
27.120.af (10)
27.120.af (13)
27.120.af (02)
27.120.af (15)
27.120.af (03)
27.120.af (04)
27.120.af (12)
27.120.af (07)
27.120.af (11)

Артикул

Название

Примечание

Количество

1

87645102

WEDGE,Lock, Silver

1шт.

2

47126431

HUB

1шт.

3

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

6шт.

4

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

16шт.

5

81865567

PLUG,M18.5 Hole

5шт.

6

11082174

CIRCLIP,105mm OD, DAC

1шт.

7

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

10шт.

Выбрано товаров: 7
