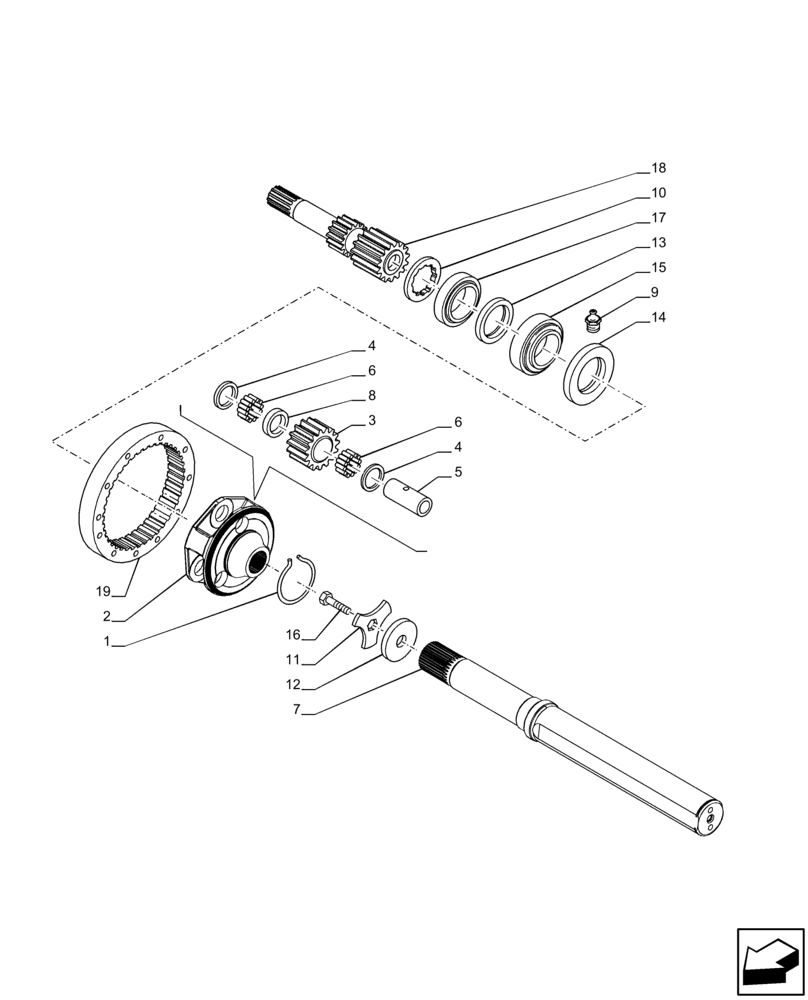

Запчасти Case IH PUMA 185 CVT (27.120.AF[11]) - VAR - 337422, 337423 - REAR AXLE, FINAL DRIVE, SHAFT, PLANETARY GEAR, 119 INCH, W/ ANTILOCK BRAKING SYSTEM (ABS) (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

47552003

PINION CARRIER

2шт.

3

87558449

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

47523140

MAIN SHAFT

112 inch

2шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

22.5 x 100 x 10

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

88mm ID x 110mm OD x 12mm

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

114mm ID x 146mm OD x 16mm

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

47618253

BOLT,Hex, M22 x 1.5 x 55mm, Full Thd, Cl 10.9

M22 x 1.5 x 55mm

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

47819828

SHAFT

, Start Year: 03-APR-17

2шт.

18

87558448

GEAR SHAFT

, Years: -02-APR-17

2шт.

19

87307352

RING GEAR

2шт.
