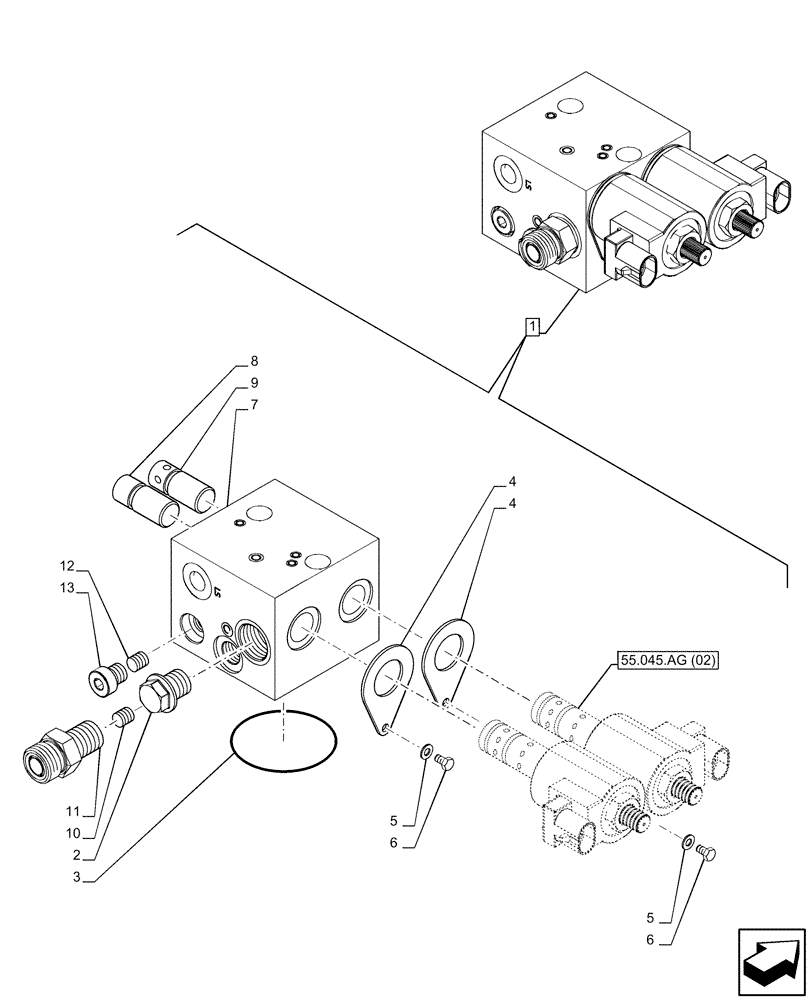

Запчасти Case IH PUMA 185 CVT (25.122.AL[04]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE - HYD CONTROL VALVE, COMPONENTS, CVT (25) - FRONT AXLE SYSTEM

1

47526297

MANIFOLD VALVE

ASSY, Incl 2 - 13

1шт.

See also Figure 55.045.AG (02)

1шт.

2

87758496

VALVE,210 Bar

1шт.

3

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

4

47526300

LOCKING RING

2шт.

5

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

6

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

2шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

8

87758492

CHECK VALVE

1шт.

9

87758498

CHECK VALVE

1шт.

10

87758495

ORIFICE,M8, D1.25

1шт.

11

84483937

NIPPLE,M16 x 1.5mm ORB x 13/16" - 16 ORFS

1шт.

12

87758494

ORIFICE,M6, D1.0

1шт.

13

87758491

FILTER STRAINER

1шт.
