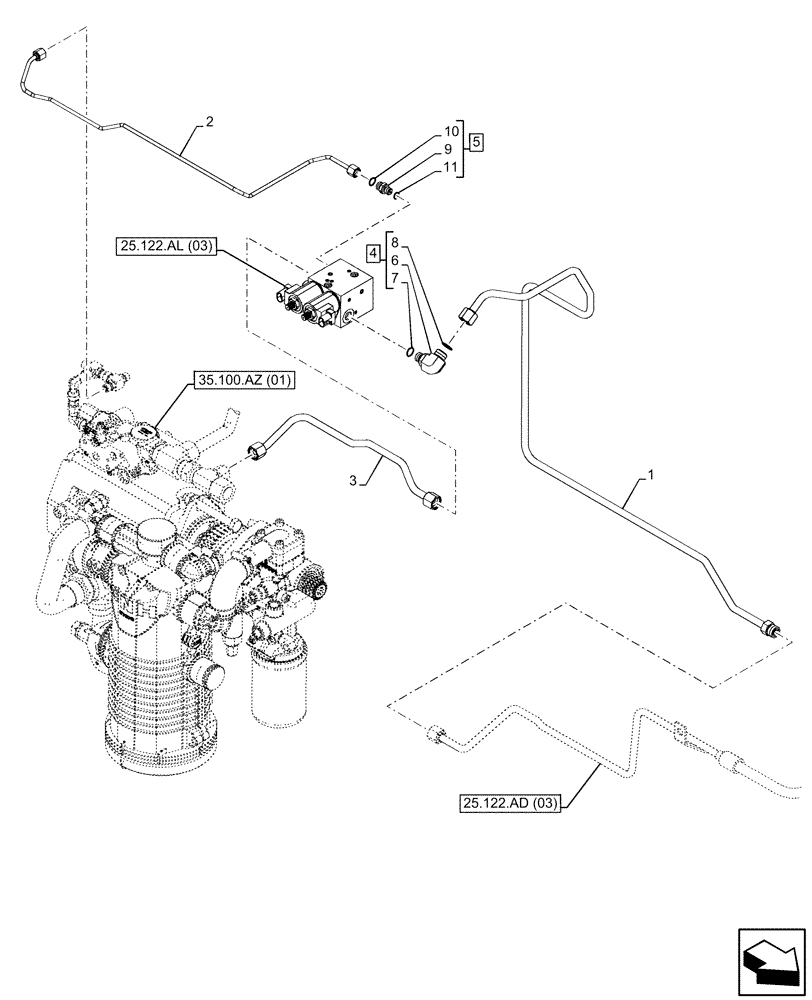

Запчасти Case IH PUMA 185 CVT (25.122.AD[04]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, LINE, CVT (25) - FRONT AXLE SYSTEM

1

87676091

PIPE

from Control Valve to Axle Suspension

1шт.

2

47723535

PIPE

LS Load Leveling

1шт.

3

87724324

HYD TUBE

Load Leveling Supply

1шт.

4

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

5

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 9 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

7

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
