Запчасти Case IH PUMA 185 CVT (25.108.AG[09]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM

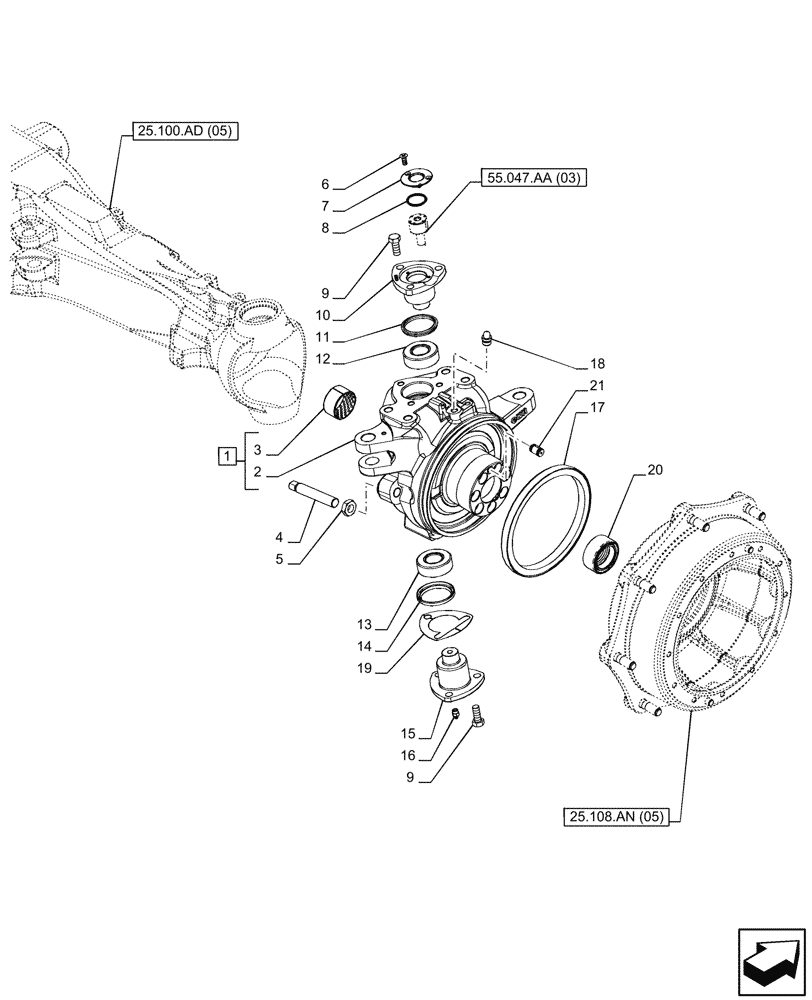

Схема запчастей Case IH PUMA 185 CVT - (25.108.AG[09]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM
25.108.an (05)
6
4
16
17
20
7
8
1
2
3
15
13
11
19
18
9
10
21
12
5
14
9
55.047.aa (03)
25.100.ad (05)

Артикул

Название

Примечание

Количество

1

84263790

STEERING KNUCKLE

RH, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 1

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

4

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

1шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

6

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

7

84384510

TOP

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

10

87345372

BALL STUD

1шт.

11

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

12

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

13

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

1шт.

14

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

1шт.

15

87382384

BALL STUD

1шт.

16

13407211

LUBE NIPPLE,M10 x 1

1шт.

17

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

1шт.

18

13413290

BREATHER

1шт.

19

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

19

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

1шт.

19

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

1шт.

19

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

1шт.

19

5137115

SHIM,0.15mm Thk

1шт.

20

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.

21

5173504

PAWL,16mm OD x 25mm L

1шт.

Выбрано товаров: 25
