(25.108.AC[07]) - VAR - 391157, 758048 - 4WD FRONT AXLE, STEERING KNUCKLE, LH, FINAL DRIVE

Запчасти Case IH PUMA 185 CVT (25.108.AC[07]) - VAR - 391157, 758048 - 4WD FRONT AXLE, STEERING KNUCKLE, LH, FINAL DRIVE (25) - FRONT AXLE SYSTEM

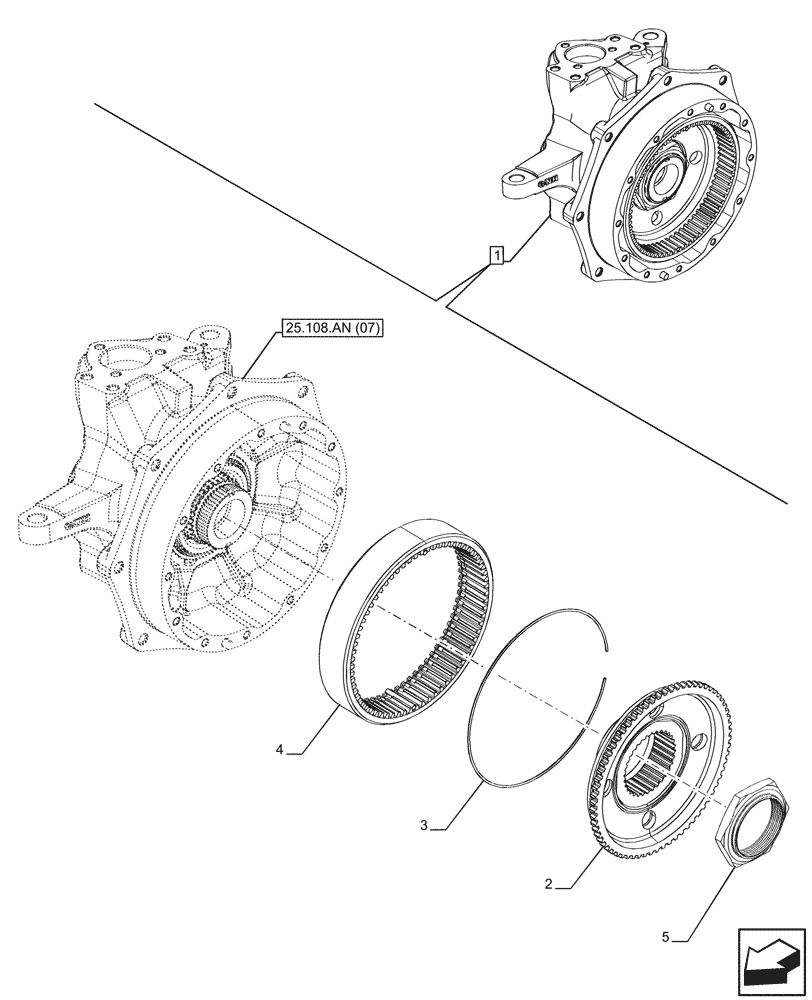

Схема запчастей Case IH PUMA 185 CVT - (25.108.AC[07]) - VAR - 391157, 758048 - 4WD FRONT AXLE, STEERING KNUCKLE, LH, FINAL DRIVE (25) - FRONT AXLE SYSTEM
5
2
25.108.an (07)
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84189972

STUB AXLE/STEERING S

ASSY, LH, Incl 2 - 5

1шт.

See Steering Knuckle Components also in Figure 25.108.AN (07)

1шт.

2

5141691

DISC

1шт.

3

4986355

CIRCLIP

1шт.

4

5102130

RING GEAR

1шт.

5

5141692

NUT,M90 x 2

1шт.
