Запчасти Case IH PUMA 185 CVT (23.314.AH[02]) - VAR - 337416, 758048, 758049 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

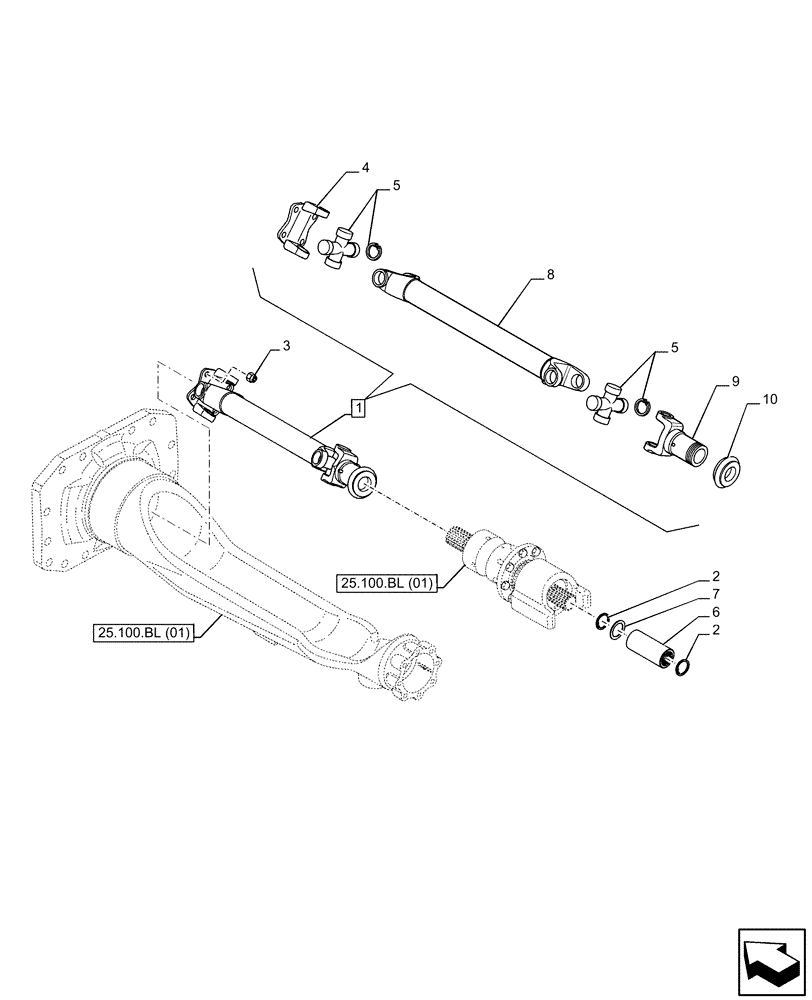

Схема запчастей Case IH PUMA 185 CVT - (23.314.AH[02]) - VAR - 337416, 758048, 758049 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
25.100.bl (01)
4
2
5
2
7
10
5
8
3
9
1
6
25.100.bl (01)

Артикул

Название

Примечание

Количество

1

84486152

DRIVE SHAFT

ASSY, Incl 4, 5, 8, 9

1шт.

2

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

3

82936516

LOCK NUT,7/16"-20

4шт.

4

NSS

NOT SOLD SEPARAT

Flange Yoke, Incl in 1

1шт.

5

84512471

SERVICE KIT,Drive Shaft

1шт.

6

47135384

SPLINED COUPLING,12T

1шт.

7

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1шт.

7

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1шт.

7

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1шт.

7

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1шт.

7

4994066

SHIM,34.60mm ID x 48.00mm OD x 2.20mm T

1шт.

7

4994067

SHIM,34.60mm ID x 48.00mm OD x 2.50mm T

1шт.

7

4994068

SHIM,34.60mm ID x 48.00mm OD x 2.80mm T

1шт.

7

4994069

SHIM,34.60mm ID x 48.00mm OD x 3.00mm T

1шт.

7

4994070

SHIM,34.60mm ID x 48.00mm OD x 3.30mm T

1шт.

7

4994072

SHIM,34.60mm ID x 48.00mm OD x 4.00mm T

1шт.

7

4994073

SHIM,34.60mm ID x 48.00mm OD x 4.30mm T

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft Tube, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Yoke Plug, Incl in 1

1шт.

10

84153203

BELLOWS

Seal, Incl in 1

1шт.

Выбрано товаров: 20
