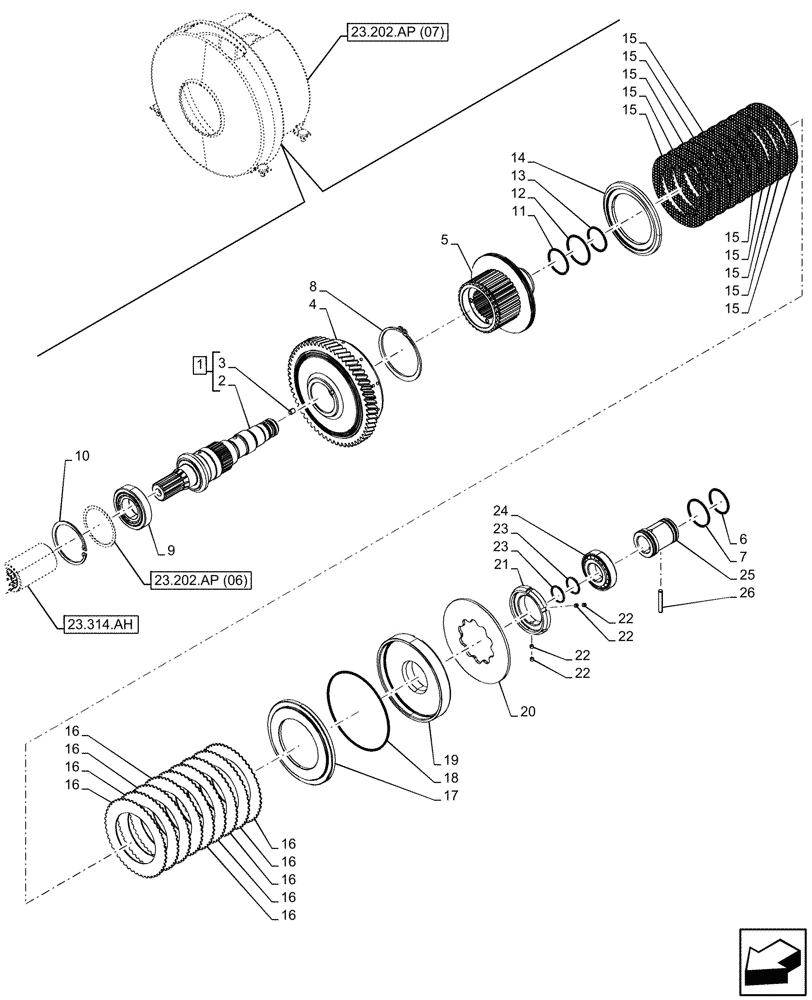

Запчасти Case IH PUMA 185 CVT (23.202.AP[05]) - VAR - 337427, 337433, 391138, 758022, 758870 - 4WD ENGAGEMENT CLUTCH CONTROL, CVT (23) - FOUR WHEEL DRIVE SYSTEM

1

5195111

SHAFT

283mm, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

4

84162091

DRIVEN GEAR

Z 64

1шт.

5

5195122

HUB

1шт.

6

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

7

14459181

O-RING,45.69mm ID x 2.62" Width

1шт.

8

5139462

SNAP RING,3mm Thk

1шт.

9

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

12

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

13

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

14

47126552

CLUTCH PLATE

1шт.

15

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

10шт.

16

5143721

CLUTCH DRIVING PLATE,50T, 152.6mm OD

9шт.

17

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

18

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

19

47128251

PISTON

1шт.

20

47127780

BELLEVILLE SPRING,75mm ID x 161.4mm OD x 4.4mm Thk

1шт.

21

84208962

NUT,Round, M58 x 1.5, 23.6 Thd

1шт.

22

86516064

SET SCREW,M6 x 6mm, Cl 12.9

4шт.

23

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

24

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

25

47822570

MANIFOLD

1шт.

26

14516210

DOWEL,M7 x 45

1шт.
