Запчасти Case IH PUMA 185 CVT (10.254.AD[02]) - VAR - 391209, 758197, 758999 - EXHAUST SYSTEM PIPE, COVER (10) - ENGINE

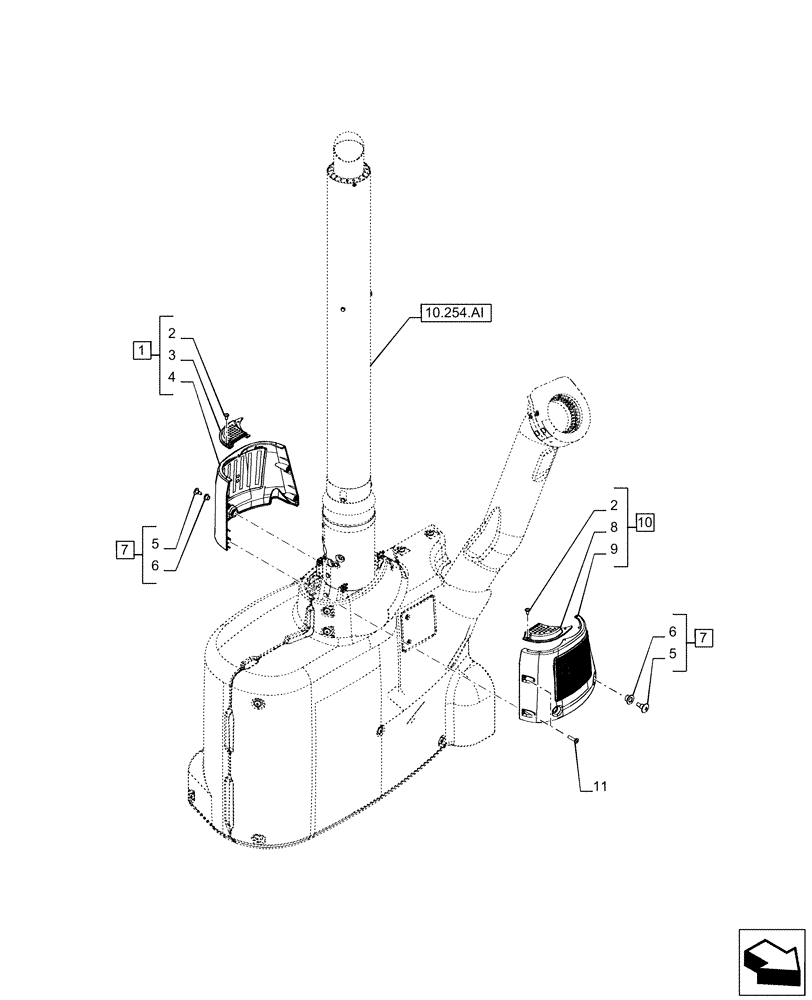

Схема запчастей Case IH PUMA 185 CVT - (10.254.AD[02]) - VAR - 391209, 758197, 758999 - EXHAUST SYSTEM PIPE, COVER (10) - ENGINE
10.254.ai
5
11
5
1
10
6
6
4
9
8
7
3
7
2
2

Артикул

Название

Примечание

Количество

1

47613900

COVER

Rear, ASSY, Incl 2 - 4

1шт.

2

16089877

SCREW,Spcl Tap, Pan Hd Phil, M4.50mm x 2.5 x 12mm

4шт.

3

NSS

NOT SOLD SEPARAT

Trim, Terminal Upper Cover, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, M6 x 20, Incl in 7

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing, Incl in 7

1шт.

7

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

ASSY, Incl 5, 6

3шт.

8

NSS

NOT SOLD SEPARAT

Trim, Terminal Upper Cover, Incl in 10

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 10

1шт.

10

47613902

COVER

Front, ASSY, Incl 2, 8, 9

1шт.

11

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

Выбрано товаров: 11
